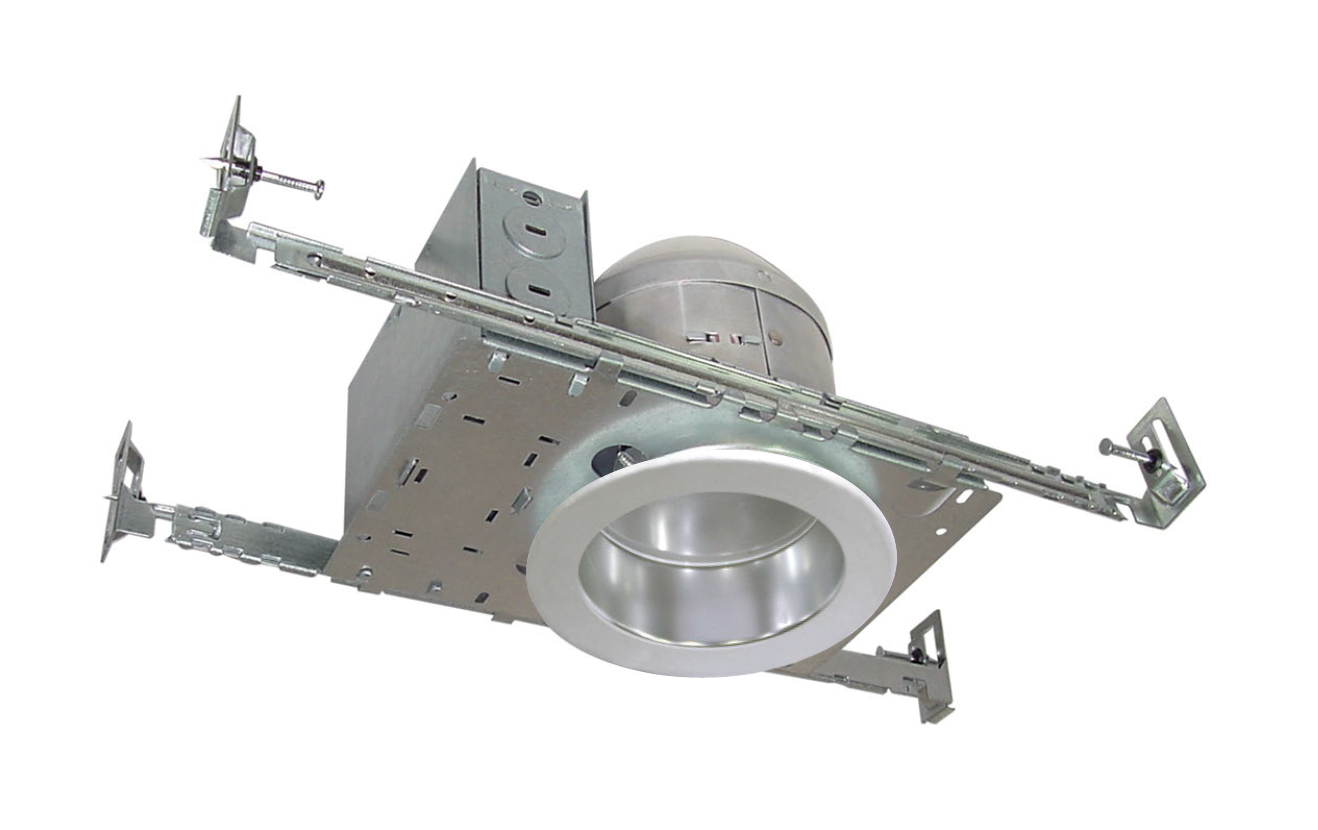

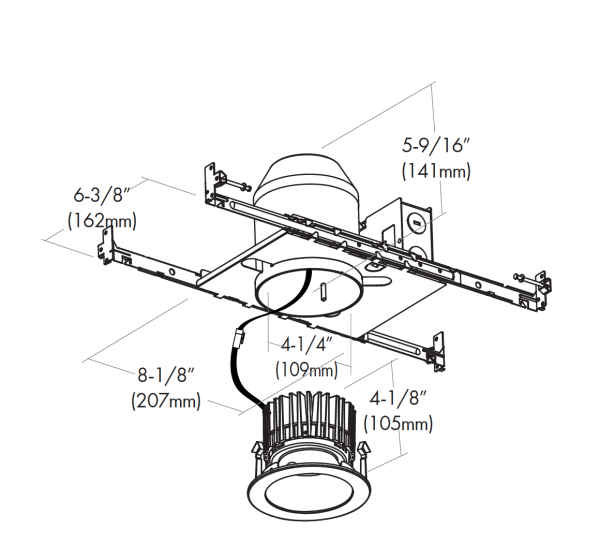

M4-MLR4 Series

Design Features

• Galvanized steel housing
• Housing is adjustable for thickness up to 1-1/4"

• Listed for through branch circuit wiring (Max. 8 No 12 AWG, 90°C branch circuit conductors)
• (5) 1/2" knockouts with pry-out slots and (4) knockouts with Romex cable clamps
• Ground wire provided on J-box

• 24" Bar Hangers provide stability and support on joists and T-Bar Grid ceilings
• Housing can be positioned at any point within 24" joist spacing
• Score lines allow easy "bend & snap-off" shortening for 12" joist spacing

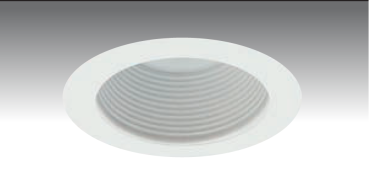

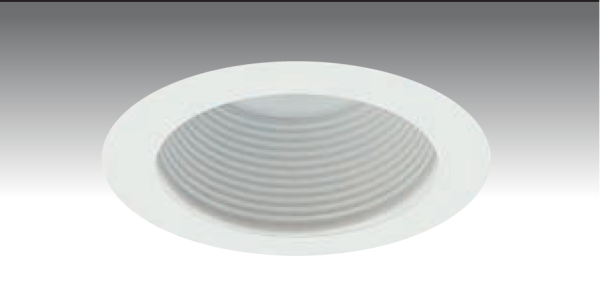

• Standard offerings with baffle trims in painted white or black plus haze clear reflectors. See "Trims" spec sheet for full offerings and ordering information

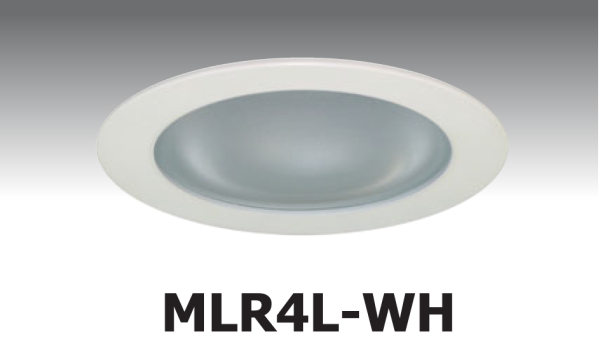

• Lens: Fine, frosted surface of tempered glass provides high lumen transmission and diffusion for even illumination

• Universal, 120~277V input, high efficady drivers with dimming capability with 0-10V Triac & ELV dimmer switches.
• Drivers feature power factor >.90, THD <20% with integral protection to sense over temperature or electrical issues.
• Driver mounts externally to the module to allow future replacement or upgrading if desired.
• Optional Lutron Hi-lume A-Series, LED drivers and EcoSystem 5-Series LED drivers are available. Lutron drivers provide flicker-free, smooth, continuous dimming down to 1% for Hi-lume and 5% for EcoSystem. (Contact factory for dimming system requiremements)

• LED Module: 5 years / 50K hours
• Product: 3 years

• cETLus Damp and Wet Location
• ENERGY STAR
• California Title 24
