MCLR8

Description

MCLR8
120V-277VAC LED 8", Non-IC, Architectural RetroKit

Down Light with interchangeable Reflector Trims

Descriptions

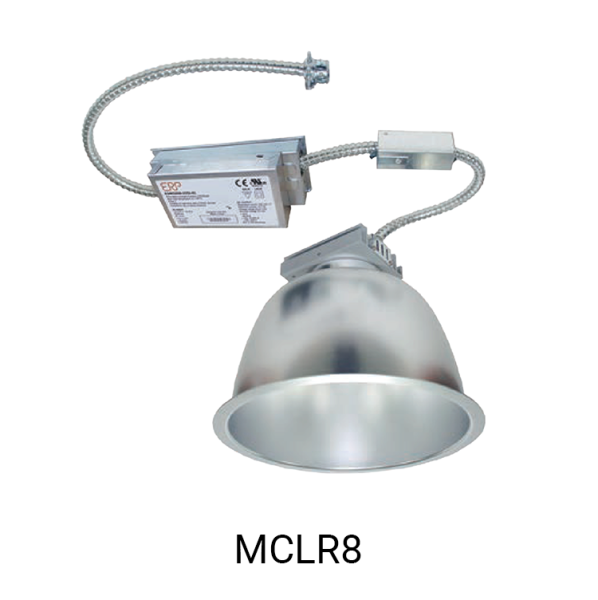

The MCLR8 is an Architectural grade, Non-IC, LED Recessed Downlight Retrokit and is available with multiple Trim Modules. It is designed for use with existing IAL 8" Architectural Incandescent, Fluorescent and Metal Halide Housings. It is also compatible with most 8" architectural housings measuring at least 6-7/8" high with an inside diameter between 8" and 8-3/4" (See Housing Compatibility section). Available with a 14W, 23W, 30W or 45W, high efficacy LED engine and universal, dimmable drivers. The optical diffuser produces high lumen transmission and even illumination. Suitable for Wet Locations.

Design Features

LED Module & Trim

Painted, extruded aluminum heat sink designed to facilitate efficient heat dissipation for superior thermal management and reliability.
LED engine includes LED, heat sink and lens assembly.

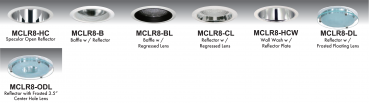

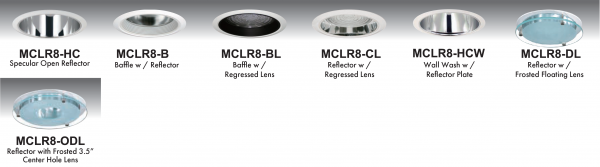

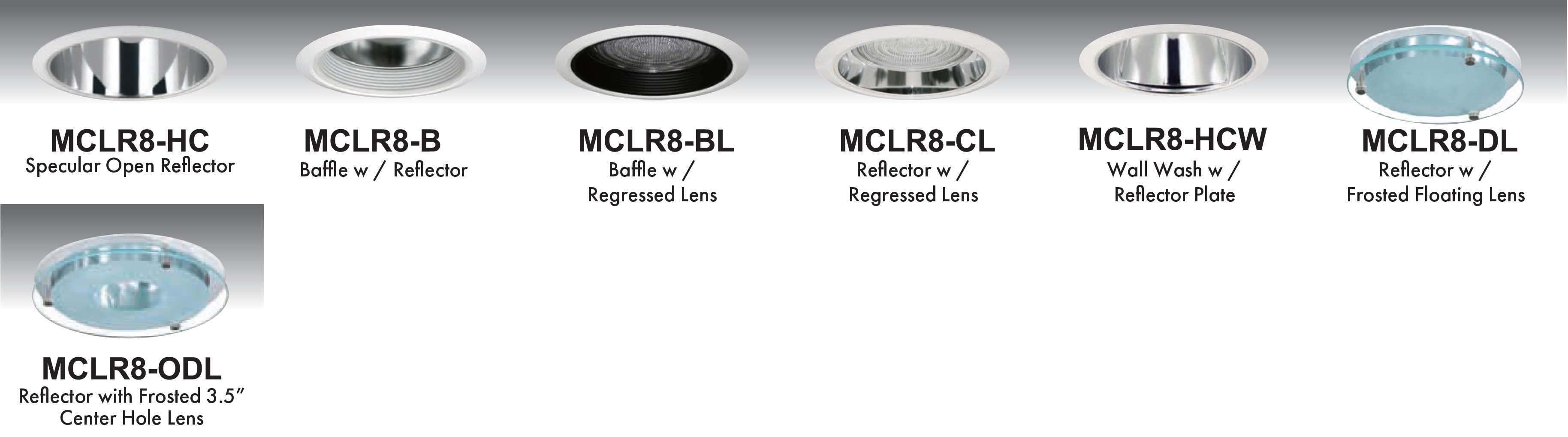

Heavy gauge aluminum reflector anodized in clear haze or white paint finishes. Multiple trim styles and finishes are available.

LED Driver

Universal, 120~277V input, high efficacy drivers with dimming capability by a Triac 120V low voltage electronic dimmer switches or 0-10V, Triac & ELV dimmer switches
Drivers feature power factor >.90, THD <20% with integral thermal protection to sense over temperature or electrical issues
Driver mounts externally to the module to allow future replacement or upgrading if desired
Optional Lutron Hi-lume A-Series, LED drivers and EcoSystem 5-Series LED drivers are available. Lutron drivers provide flicker-free, smooth, continuous dimming down to 1% for Hi-lume and 5% for EcoSystem (Contact factory for dimming system requirements)

Electrical Connection

Attach supply line to existing junction box through one of the knockouts provided in junction box. The existing socket whip and ballast can be set aside above the ceiling or removed completely.

Retrokit Mounting

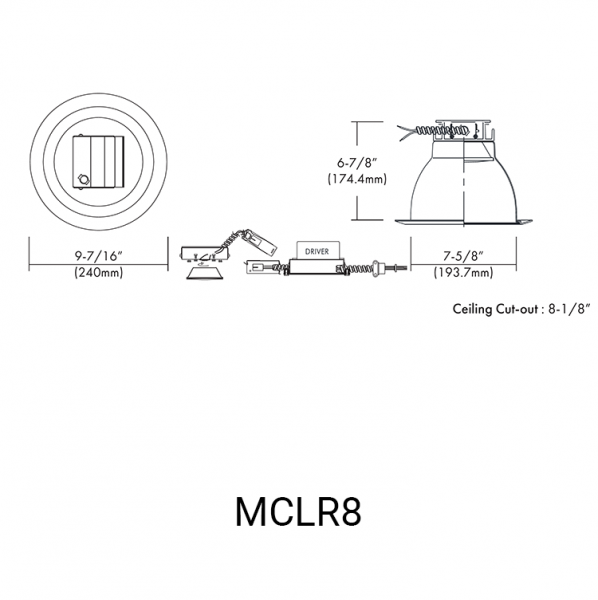

Designed for use with most existing 6-3/8" - 7-1/4" aperture architectural incandescent, fluorescent and metal halide housings. Supplied with flexible metal conduit for connection to existing electrical junction box. Existing frame-in kits mounting via friction springs or clips.
