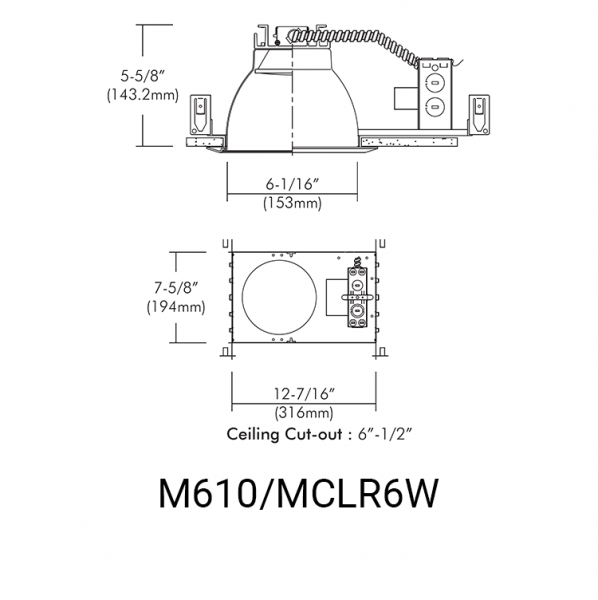

M610/MCLR6W

Description

M610/MCLR6W

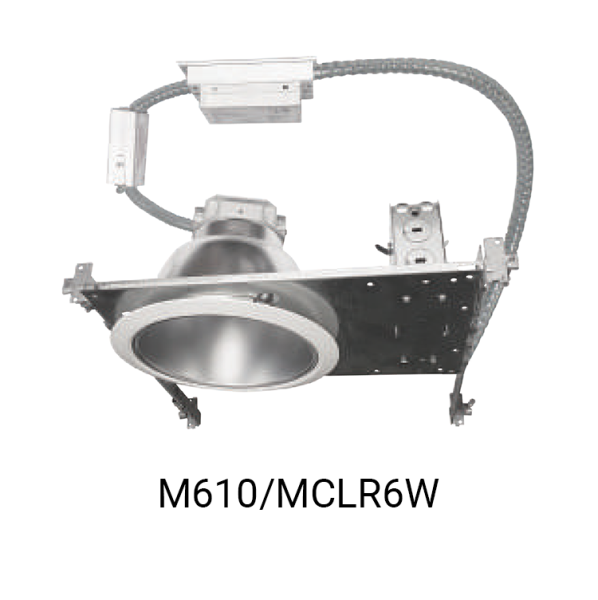

120V-277VAC LED 6", Non-IC, Commercial Flat Frame-in Kit

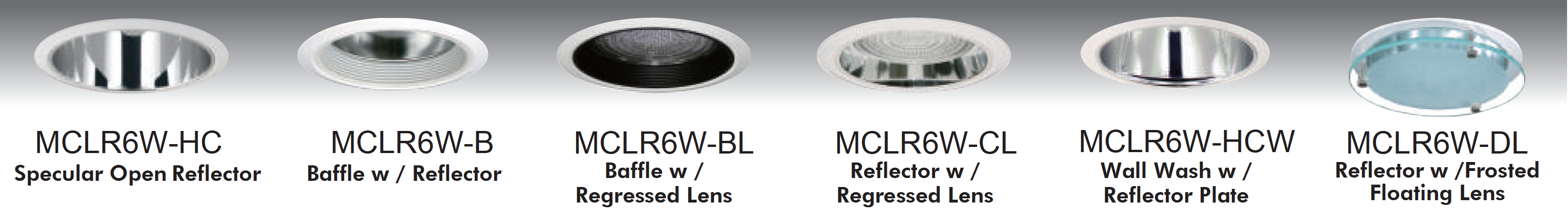

Down Light with interchangeable Reflector Trims

Description

The M610/MCLR6W is a 6" LED, Non-IC Commercial Flat Frame-in kit and is available with multiple Trim styles. Designed for use in non-insulated ceilings. Insulation material must be kept a minimum of 3" from fixture. Available with a 14W, 23W, 30W or 45W, high efficacy LED engine and universal, dimmable drivers. The special optical diffuser produces high lumen transmission and even illumination. Suitable for Wet Locations.

Design Features

Mounting Frame

Galvanized steel construction
Housing adjusts for ceilings up to 1-1/4" thick

LED Module & Trim

Painted, extruded aluminum heat sink designed to facilitate efficient heat dissipation for superior thermal management and reliability
LED engine includes LED, heat sink and lens assembly
Heavy gauge aluminum reflector anodized in clear haze or white paint finishes. Multiple trim styles and finishes are available

LED Driver

Universal, 120~277V input, high efficacy drivers with dimming capability by a Triac 120V low voltage electronic dimmer switches or 0-10V, Triac & ELV dimmer switches
Drivers feature power factor >.90, THD <20% with integral thermal protection to sense over temperature or electrical issues
Driver mounts externally to the module to allow future replacement or upgrading if desired

Junction Box

Listed for through branch circuit wiring. (Max.8 No 12 AWG 90°C branch circuit conductors: 4 in, 4 out)
(5) 1/2" knockouts with pry-out slots and (4) knockouts with Romex cable clamps
Ground wire provided on J-box

Bar Hangers
