M800/MCLR8W

Description

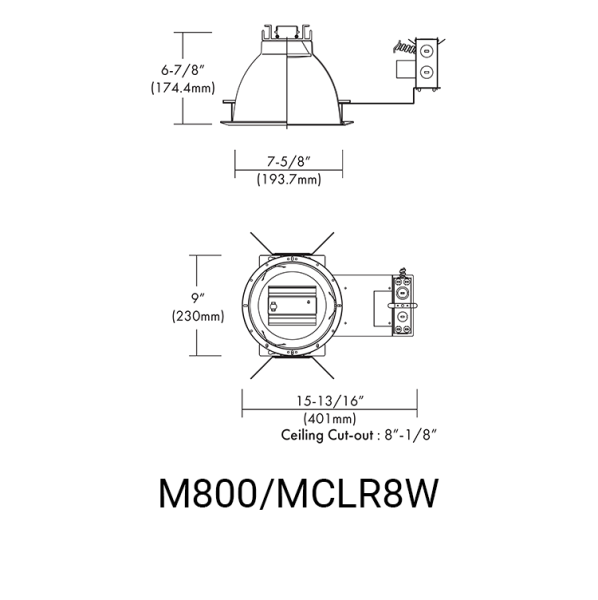

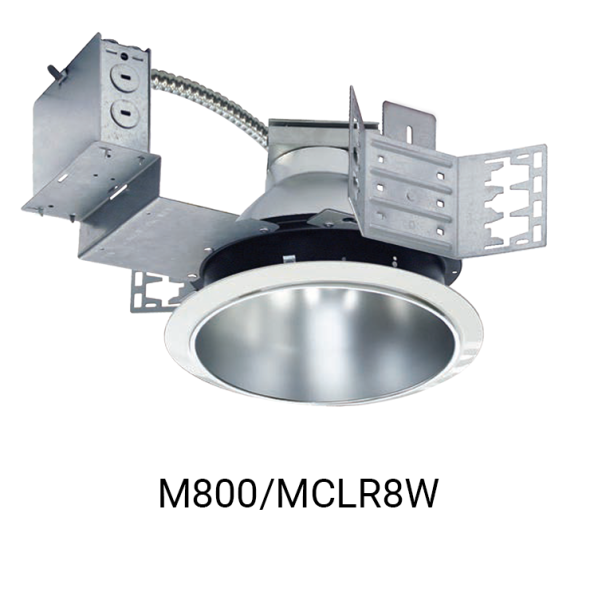

M800/MCLR8W
120V-277VAC LED 8", Non-IC, Architectural Frame-in Kit

Down Light with interchangeable Reflector Trims

Descriptions

The M800/MCLR8W is a 8" LED, Non-IC Architectural Frame-in kit and is available with multiple Trim styles. Designed for use in non-insulated ceilings. Insulation material must be kept a minimum of 3" from fixture. Available with a 14W, 23W, 30W or 45W, high efficacy LED engine and universal, dimmable drivers. The special optical diffuser produces high lumen transmission and even illumination. Suitable for Wet Locations.

Design Features

Mounting Ring

20-gauge CRS mounting ring, painted black. The 1-5/8" deep collar may be used with various ceiling material thicknesses.

LED Module & Trim

Painted, extruded aluminum heat sink designed to facilitate efficient heat dissipation for superior thermal management and reliability
LED engine includes LED, heat sink and lens assembly

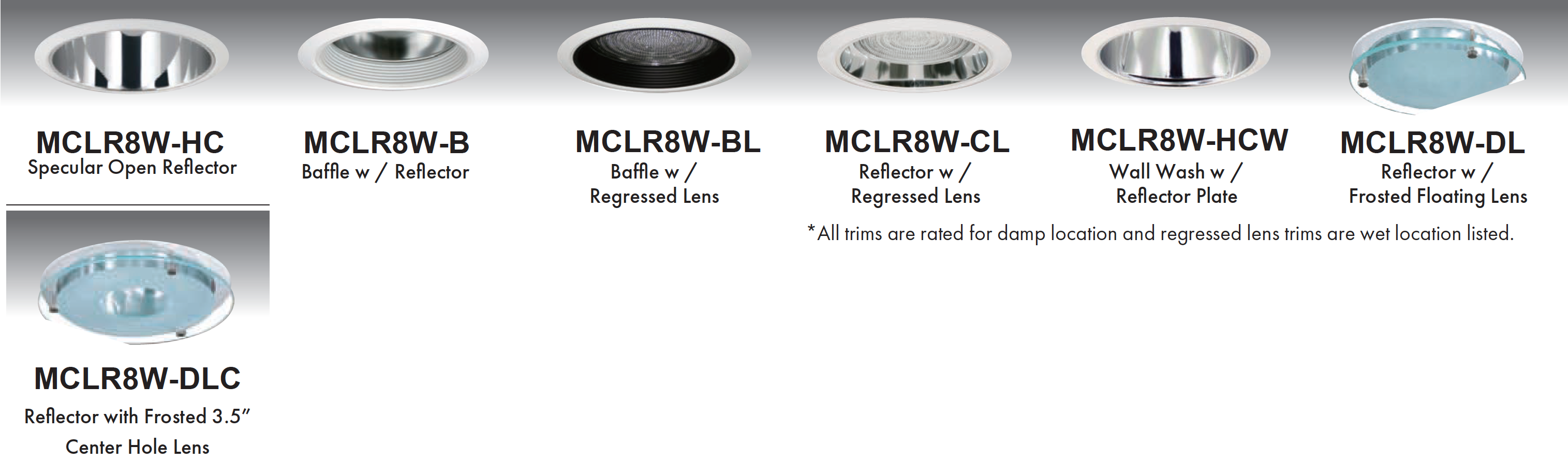

Heavy gauge aluminum reflector anodized in clear haze or white paint finishes. Multiple trim styles and finishes are available

LED Driver

Universal, 120~277V input, high efficacy drivers with dimming capability by a Triac 120V low voltage electronic dimmer switches or 0-10V, Triac & ELV dimmer switches
Drivers feature power factor >.90, THD <20% with integral thermal protection to sense over temperature or electrical issues
Driver mounts externally to the module to allow future replacement or upgrading if desired
Optional Lutron Hi-lume A-Series, LED drivers and EcoSystem 5-Series LED drivers are available. Lutron drivers provide flicker-free, smooth, continuous dimming down to 1% for Hi-lume and 5% for EcoSystem (Contact factory for dimming system requirements)

Mounting Channel Bracket

Commercial mounting kit provides up to 5" vertical admustment and accommodates 1/2" EMT conduit. Optional HB-24 or HBC-24 bar hanger or lathing channels for T-bar grid or concealed spline ceiling are also available.

Junction Box

Listed for through branch circuit wiring. (Max.8 No 23 AWG 90°C branch circuit conductors: 4in, 4out)
(5) 1/2" knockouts with pry-out slots and (4) knockouts with Romex cable clamps
Ground wire provided on J-box
