M610IC/MCLR6W

Description

M610IC/MCLR6W
120V~277VAC LED 6", IC, Commercial Flat Frame-in Kit
Down Light with interchangeable Reflector Trims

Description

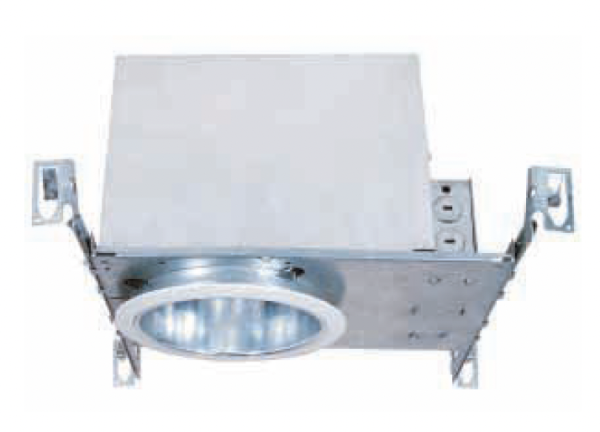

The M610IC/MCLR6W is a 6" LED, IC Commercial Flat Frame-in kit and is available with multiple Trim styles. Available with a 14W or 23W, hiigh efficacy LED engine and universal, dimmable drivers. The special optical diffuser produces high lumen transmission and even illumination. This luminaire is listed as Type IC and is suitable for direct contact with insulation. Suitable for Wet Locations.

Design Features

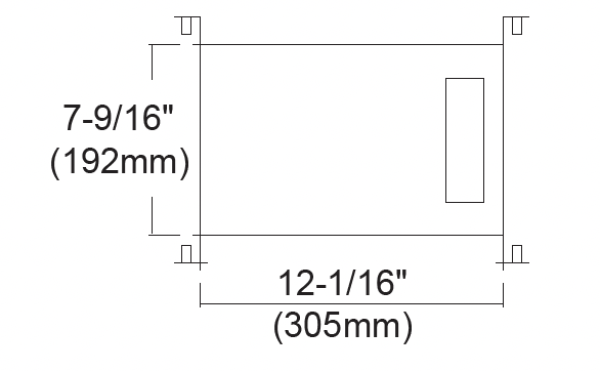

Mounting Frame

Galvanized steel construction

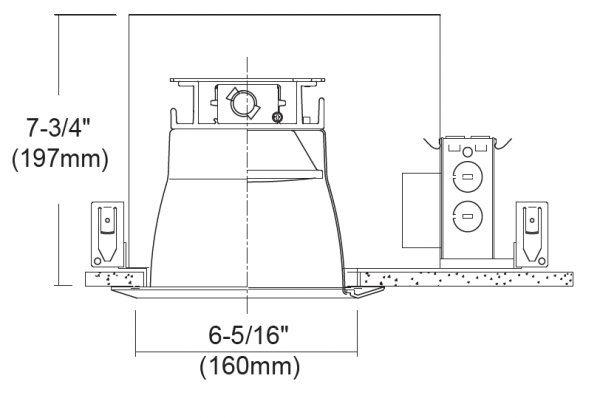

Housing adjusts for ceilings up to 1-1/4" thick

LED Module & Trim

Painted, extruded aluminum heat sink designed to facilitate efficient heat disspation for superior thermal management and reliability.
LED engine includes LED, heat sink and lens assembly
Heavy gauge aluminum reflector anodized in clear haze or white paint finishes. Multiple trim styles and finishes are available

LED Driver

Universal, 120~277V input, high efficacy drivers with dimming capability by a Triac 120V low voltage electronic dimmer switches or 0-10V, Triac & ELV dimer switches.
Drivers feature power factor >.90, THD y20% with integral thermal protection to sense over temperature or electrical issues.
Driver mounts externally to the module to allow future replacement or upgrading if desired.

Junction Box

Listed for throught branch circuit wiring. (Max. 8 No 12 AWG 90° branch circuit conductors: 4 in, 4 out)
(5) 1/2" knockouts with pry-out slots and (4) knockouts with Romex cable clamps.
Ground wire provided on J-box

Bar Hangers

24" Bar Hangers provide stability and support on joists and T-Bar Grid ceilings.
Housing can be positioned at any point within 24" joist spacing.
Score lines allow eas "bend & snap-off" shortening for 12" joist spacing.

Options
