M4X4 Series
M4X4 Series
4" Surface Decorative Square with Adjustable LED
120V and 277V
Housing
Mounting
Gasket
Connector
Listing
Warranty

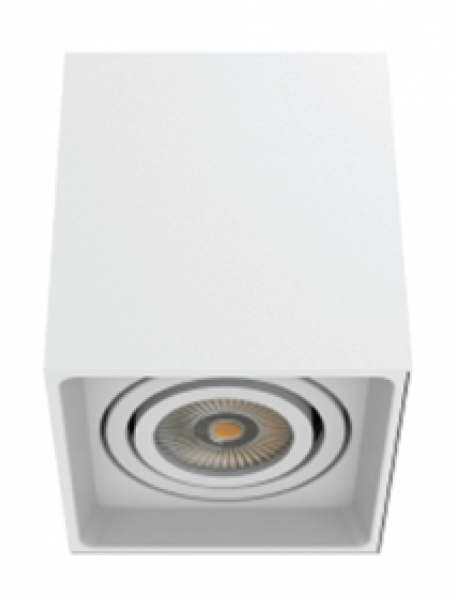

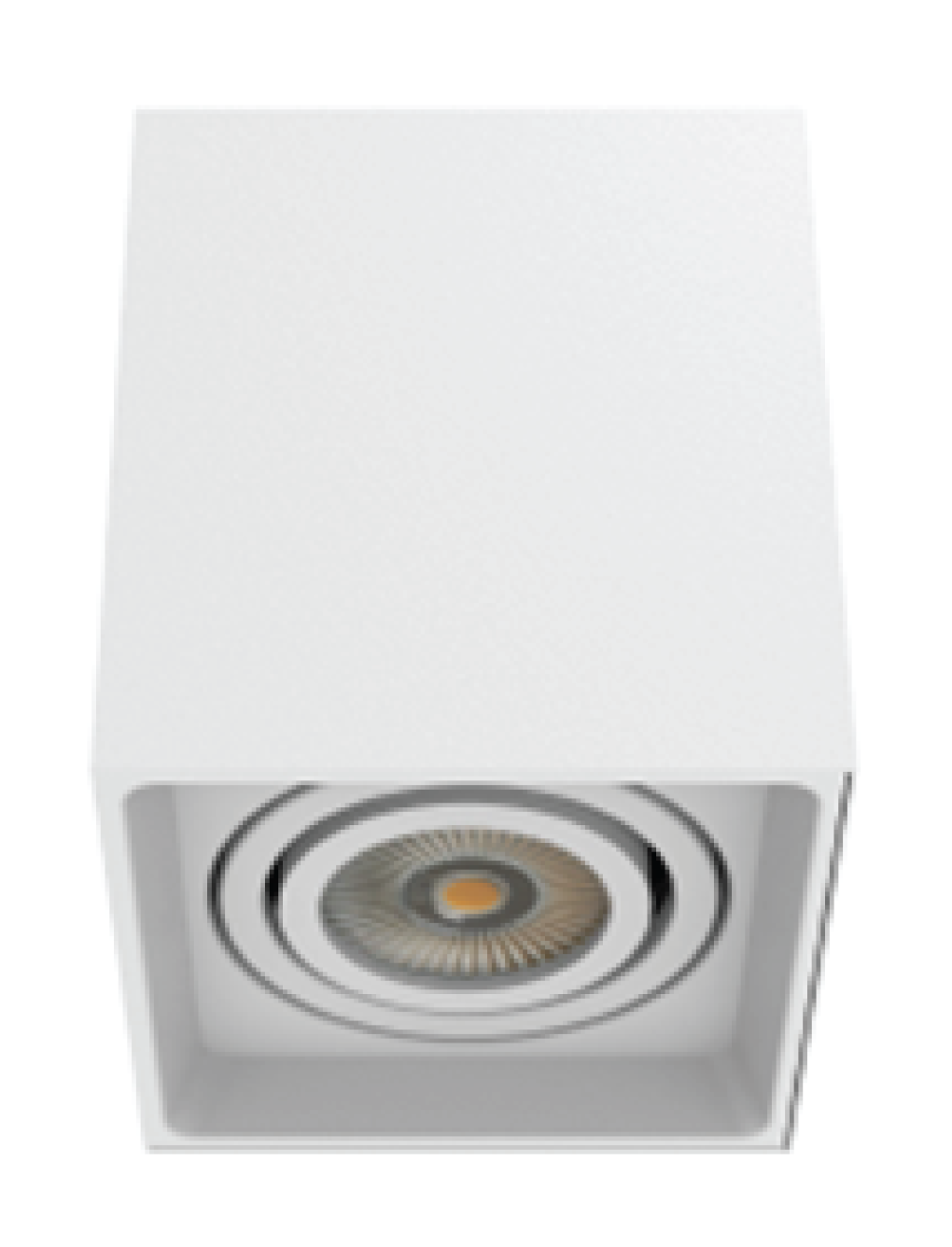

4" Surface Decorative Square with Adjustable LED
120V and 277V
Description
M4X4 Series Square is a way to install a surface mounted Luminaire on a T-Bar, Drywall or concrete ceiling for a compact decorative look that will enhance an area where you need a surface application.Features & Functions

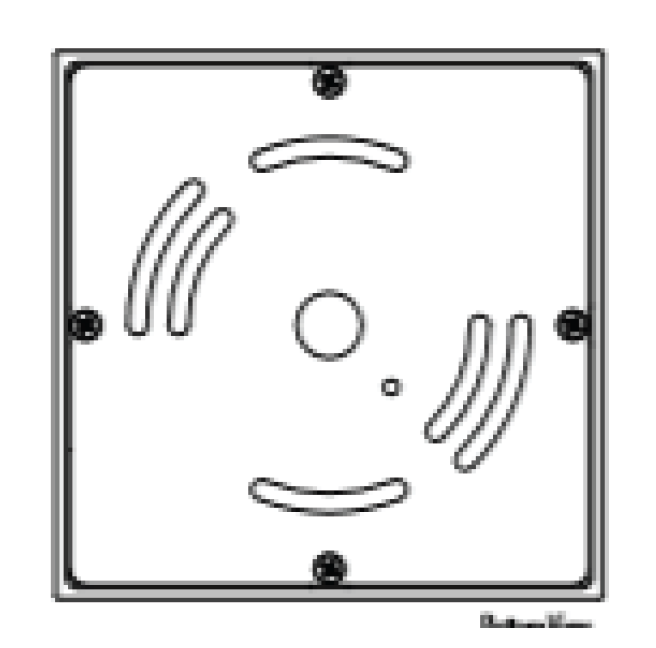

Housing
- Diecast aluminum square housing with die formed Square 4" LED aperture that is adjustable to 20 Degrees
Mounting
- Attaches directly to 3-1/2" round ceiling pans, 3-1/2" & 3" octagon boxes, fixture mud ring
Gasket
- Provided with die cut white and black gasket for use in wet locations, covered ceilings only
Connector
- Two-conductor wire mount connector is rated for 120 ~277V in LED Module
- CAUTION: verify LED module input voltage is comptabile with the input voltage of the housing. If uncertain, consult a qualified electrician
- Separate two-conductor wire mount connector for 0-10V low voltage control if ordered as described below
Listing
- CSA-us Certificated
- Energy star Approved & Listed
Warranty
- Wet location
- 5 year of lamp life
- M4X4 Specification Sheet (1.04 MB)
