M800R/MCLR8W

Description

M800R/MCLR8W
120V~277VAC LED 8", Non-IC, Remodel Frame-in Kit
Down Light with interchangeable Reflector Trims

Description

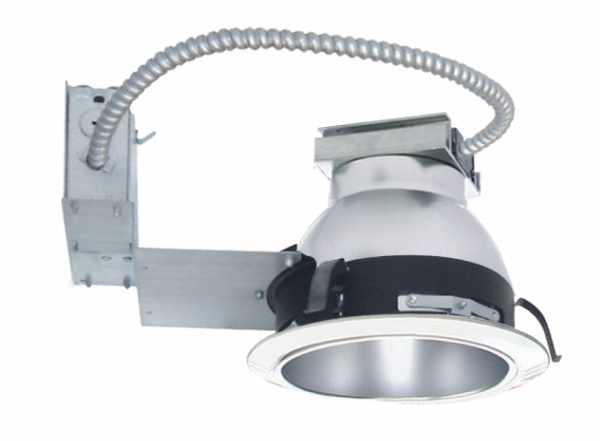

The M800R/MCLR8W is on 8" LED, Non-IC Remodel Frame-in kit and is available with multipe Trim styles. Designed for use in non-insulated ceilings, Insulation material must be kept a minimum of 3" from fixture. Available with a 14W, 23W, 30W or 45W high efficacy LED engine and universal dimmable drivers. The special optical diffuser produces high lumen transmission and even illumination. Suitable for Wet Locations.

Design features

LED Module & Trim

Painted, extruded aluminum heat sink designed to facilitate efficient heat dissipation for superior thermal management and reliability.
LED engine includes LED, heat sinkd and lens assembly.

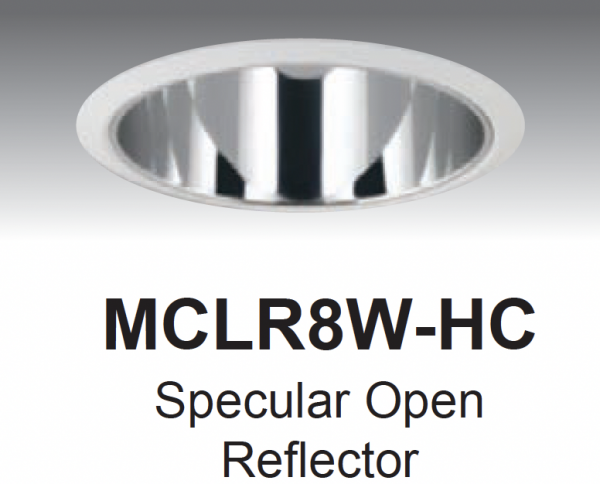

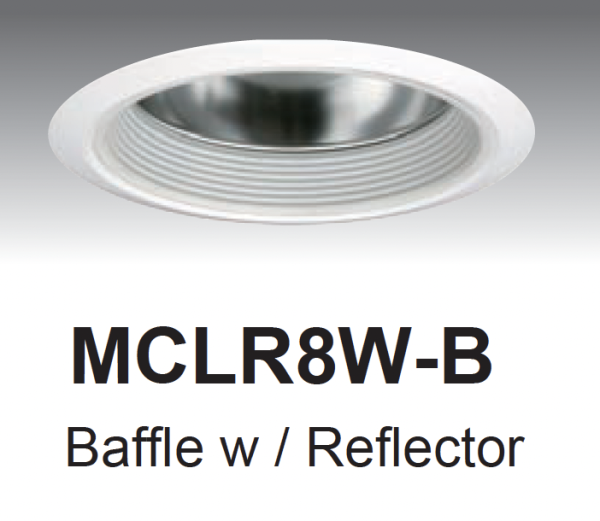

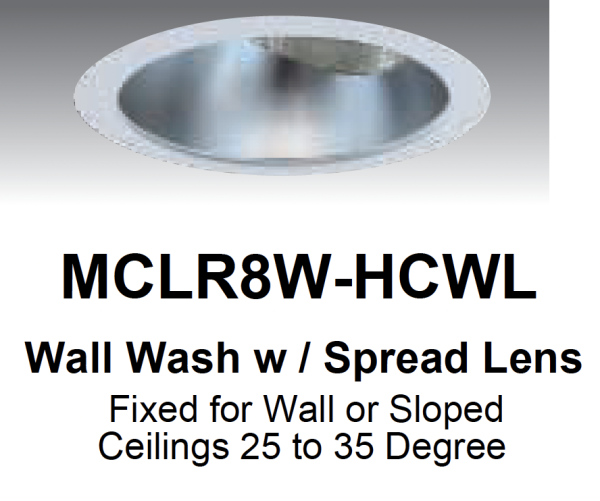

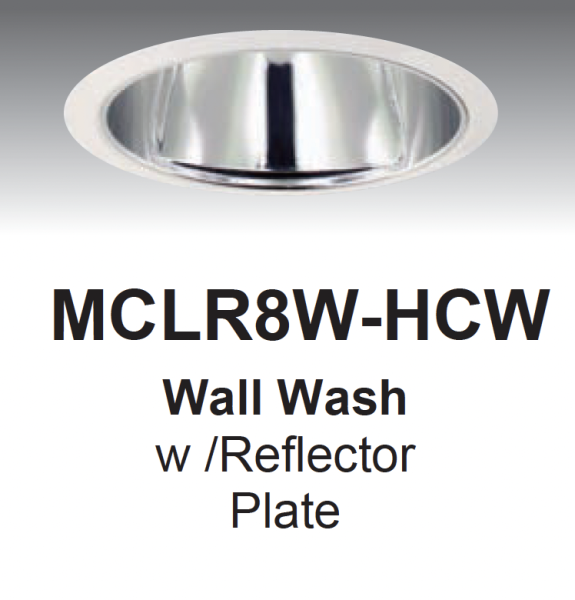

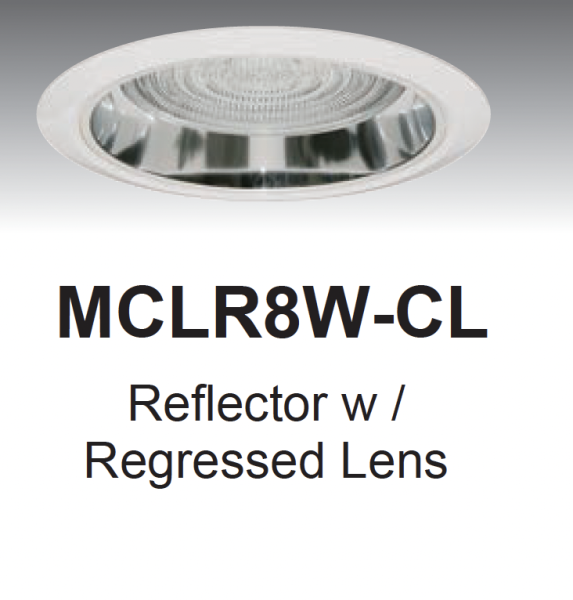

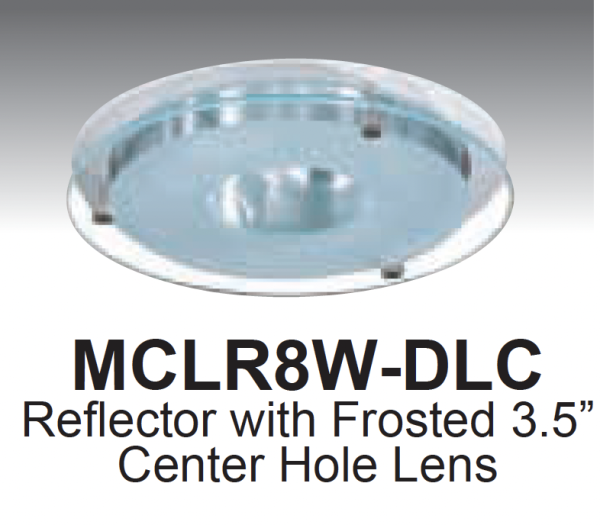

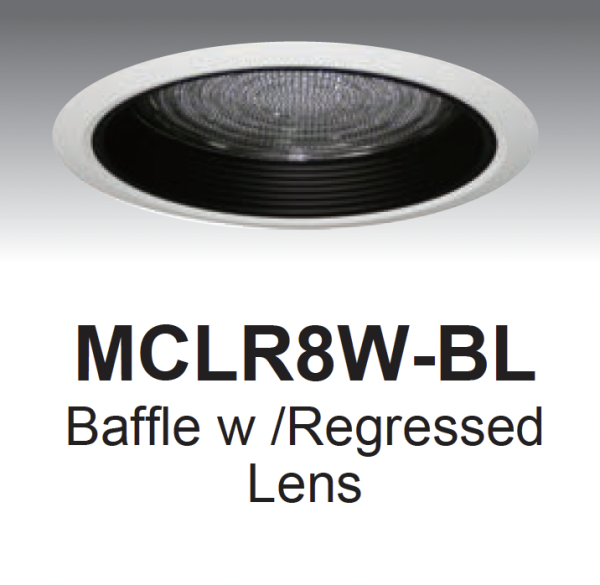

Heavy gauge aluminum reflector anodized in clear haze or white paint finishes. Multiple trim styles and finishes are available.

LED Driver

Universal, 120~277V input, high efficacy drivers with dimming capability by 1. a Triac 120V low voltage electronic dimmer switches or 2. 0-10V, Triac & ELV dimmer switches.
Drivers feature power factor >.90, THD <20% with integral thermal protection to sense over temperature or electrical issues.
Driver mounts externally to the module to allow future replacement or upgrading if desired.
Optional Lutron Hi-lume A-Series, LED drivers and EcoSystem 5-Series LED drivers are available. Lutron drivers provide flicker-free, smooth, continuous dimming down to 1% for Hi-lume and 5% for EcoSystem (Contact factory for dimming system requirements)

Remodel Clips

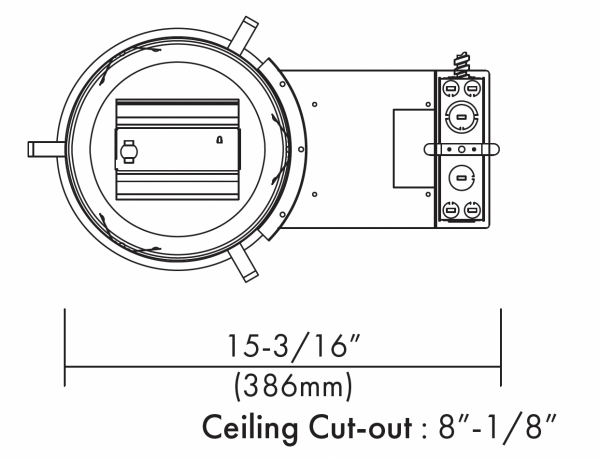

3 remodel clips secure housing into the ceiling and accommodates 1/2" and 5/8" ceiling materials.

Junction Box

Listed for through branch circuit wiring. (Max. 8 No12 WG 90° branch circuit conductors: 4 in, 4 out)
(5) 1/2" knockouts with pry-out slots and (4) knockouts with Romex cable clamps.
Ground wire provided on J-box.
