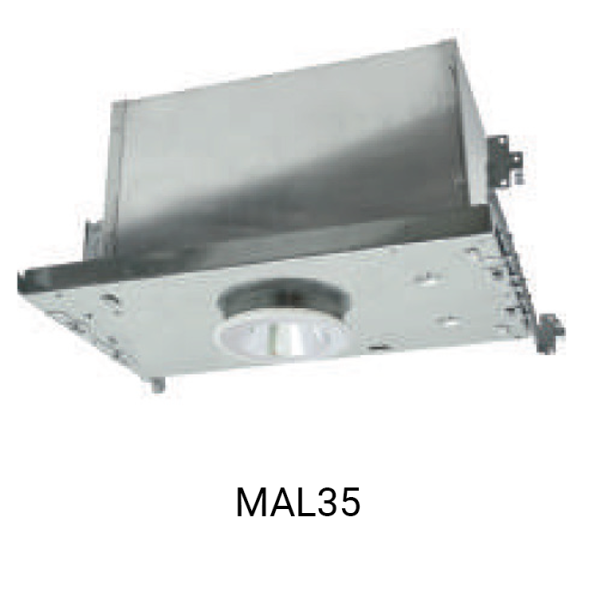

MAL35

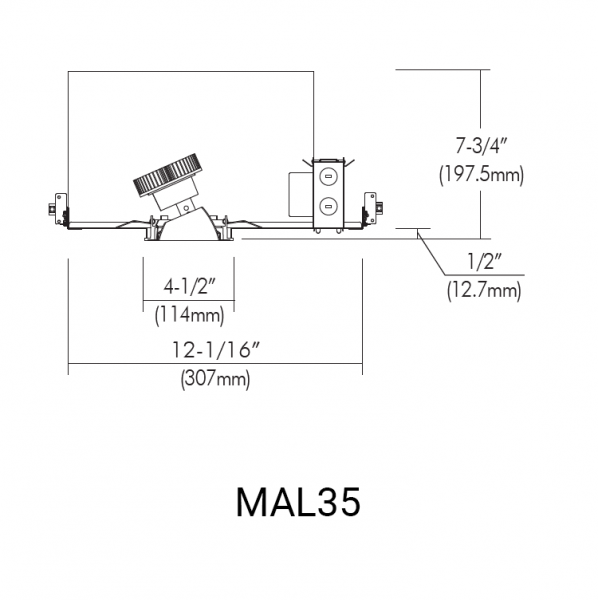

MAL35 Linedrawing

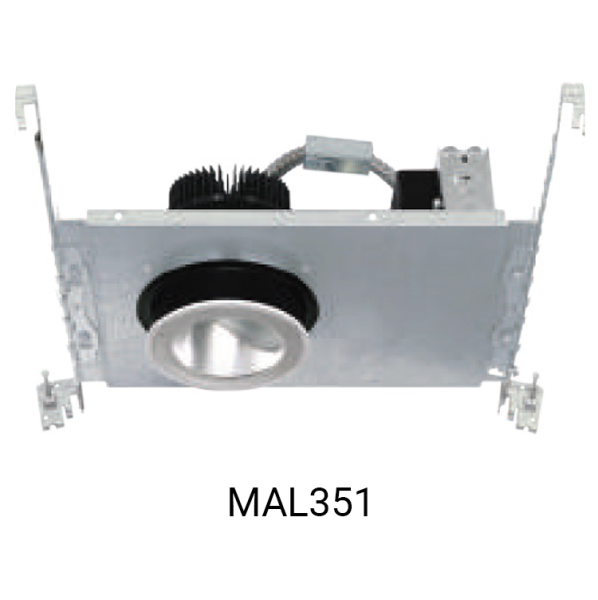

MAL351

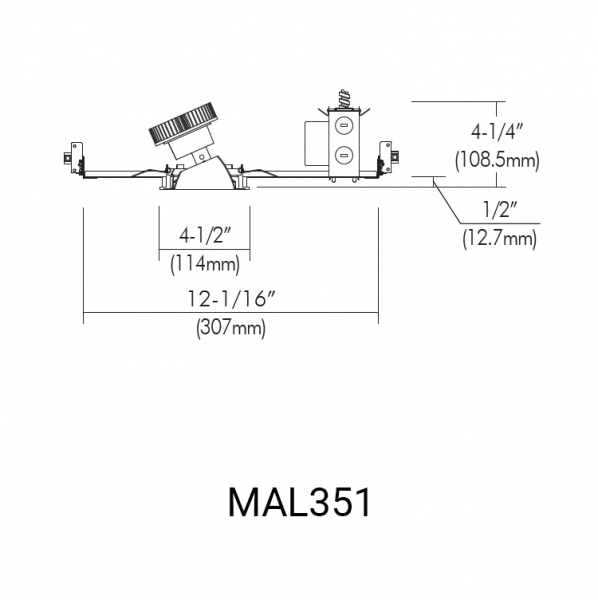

MAL351 Linedrawing

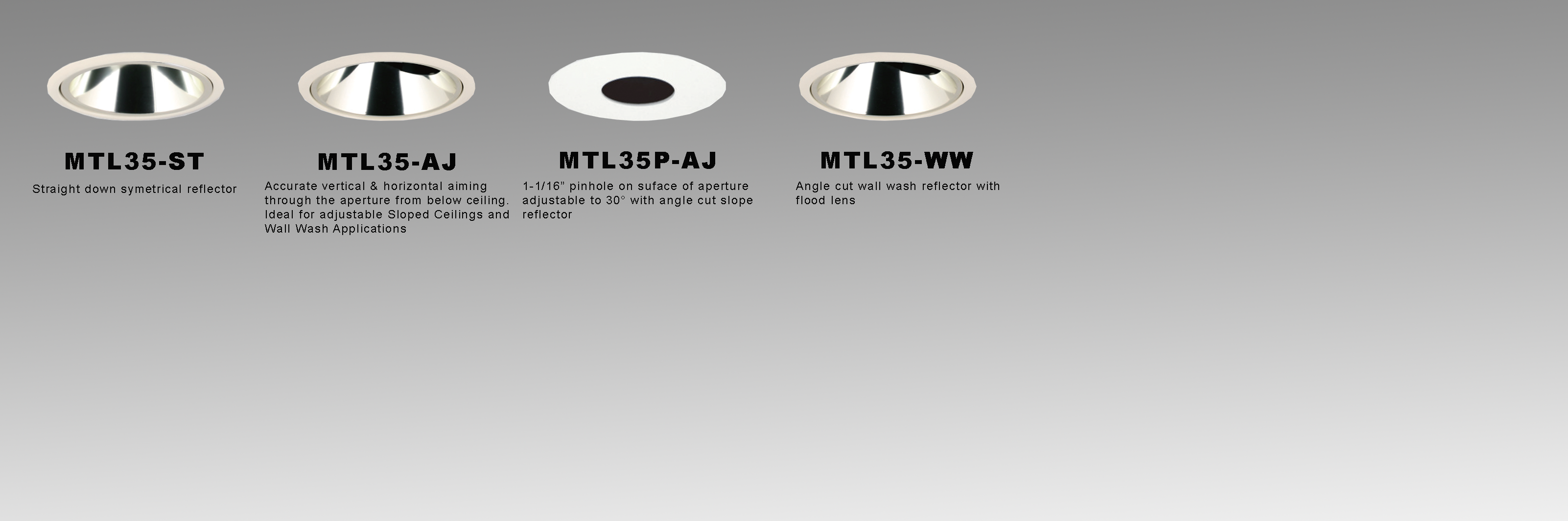

MAL35, MAL351 Trims
Preview: MAL35
Preview: MAL35 Linedrawing
Preview: MAL351
Preview: MAL351 Linedrawing
Preview: MAL35, MAL351 Trims
MAL35, MAL351
MAL35
MAL35 Linedrawing
MAL351
MAL351 Linedrawing
MAL35, MAL351 Trims
Mobile Preview: MAL35
Mobile Preview: MAL35 Linedrawing
Mobile Preview: MAL351
Mobile Preview: MAL351 Linedrawing
Mobile Preview: MAL35, MAL351 Trims

MAL35, MAL351

Ordering Information
- - - - - - - -

Description
MAL35, MAL351
3.5" IC and Non-IC Architectural LED Downlights



Design Features

  • Interchangeable reflectors to achieve different beam distributions
  • Minimum Trim reveals are 0.12" thick
  • Multipe reflector distribution patterns available: pinhole trim with Narrow Spot (NS), Narrow beam (N), Medium beam (M), and Wide beam (W)
  • Ceiling thickness allow 1/2" ~ 1-1/2"
  • Adjustable trim allow engine to be angled 0° ~ 30° tilt with a 356° rotation for precise, lockable aiming
  • Wall Wash trim with angled slope reflector. Molded spread lens for great uniformity
  • Dimming capability is standard with 0 - 10V dimmer switches
  • Certified to IESNA LM-79: Approved method for the Electrical and Photometric Testing of Solid State Lighting. The U.S. Department of Energy (DOE) verfies product test data and results. LED chip sets are in compliance with LM80. cETLus Listed.


Specification Sheet
MAL35_MAL351 Specification Sheet  (1.25 MB)
