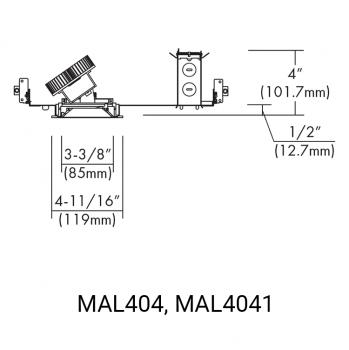

MAL404, MAL4041
MAL404, MAL4041
120-277V AC Square 3.5" x 3.5" Recessed Fixture, LED COB Chip
Mounting Channel Bracket
Heat Sink
Trims
Optic
LED Engine
LED Power Supply Driver
Limited Warranty
Listing
120-277V AC Square 3.5" x 3.5" Recessed Fixture, LED COB Chip
Description
The MAL404 Series, Square 3.5" X 3.5" fixture is designed for accent lighting and is provided with a solid state LED engine integrated aluminum heat sink. The dual reflector system provices excellent cutoff. The electronic, Universal driver is isolated for reliability on the junctionbox and can be accessed from below the ceiling. Offered in four wattages, 10W, 14W, 23W and 30W. These luminaires are rated LM70 life of 50,000 hours and has high efficacy for long term energy savings. Suitable for Wet Locations.Design Features
Junction Box- Listed for through branch circuit wiring (Max. 8 No 12 AWG 90°C branch circuit conductors)
- (5)1/2" knockouts with pry-out slots and (4) knockouts for Romex cable clamp
- Ground wire provided on J-box
Mounting Channel Bracket
- Commercial mounting kit provides up to 5" vertical adjustment for accommodates 1/2" EMT conduit, optional HBC-24 bar hager or lathing channels fot T-bar grid or concealed spline ceiling
Heat Sink
- The aluminum heat sink was computer designed with simulation software to quickly distribute the heat away from the LED module to reduce the LED junction temperature in order to maintain constant light output, color and life of electronic components.
Trims
- See "Trims" spec sheet for selection or ordering information
Optic
- Precisely designed Inner Reflector attaches to the LED module to provide precise beam control and reduces glare for even illumination
- Glass Lens: Translucent tempered glass provides high lumen transmission and diffusion
LED Engine
- COB (Chip on board) LED package
- Aluminum clad PC board is used to dissipate the heat away from the LED module for cooler operation
- Lumen Maintenance: L70/50, 70% lumens/50,000 hours
LED Power Supply Driver
- Universal, 120~277V input, high efficacy drivers with dimming capability by
- 1. a Triac 120V low voltage electronic dimmer switches or
- 0-10V, Triac & ELV dimmer switches
- Drivers feature power factor >.90, THD <20% with integral thermal protection to sense over temperature or electrical issues
- Driver installed on junction box door for easy access below ceiling
Limited Warranty
- LED Module: 5 years/50K hours
- Product/Driver: 5 years
Listing
- cETLus Wet Location
