MCL6 - LCT
MCL6-LCT
6" Architectural Modular LED Cylinder Ceiling, Wall, and Pendant Mount Selectable Damp and Wet Location Cylinder
Mounting
Lumen Maintenance
Environment
Compliance
Warranty
6" Architectural Modular LED Cylinder Ceiling, Wall, and Pendant Mount Selectable Damp and Wet Location Cylinder
SPECIFICATIONS

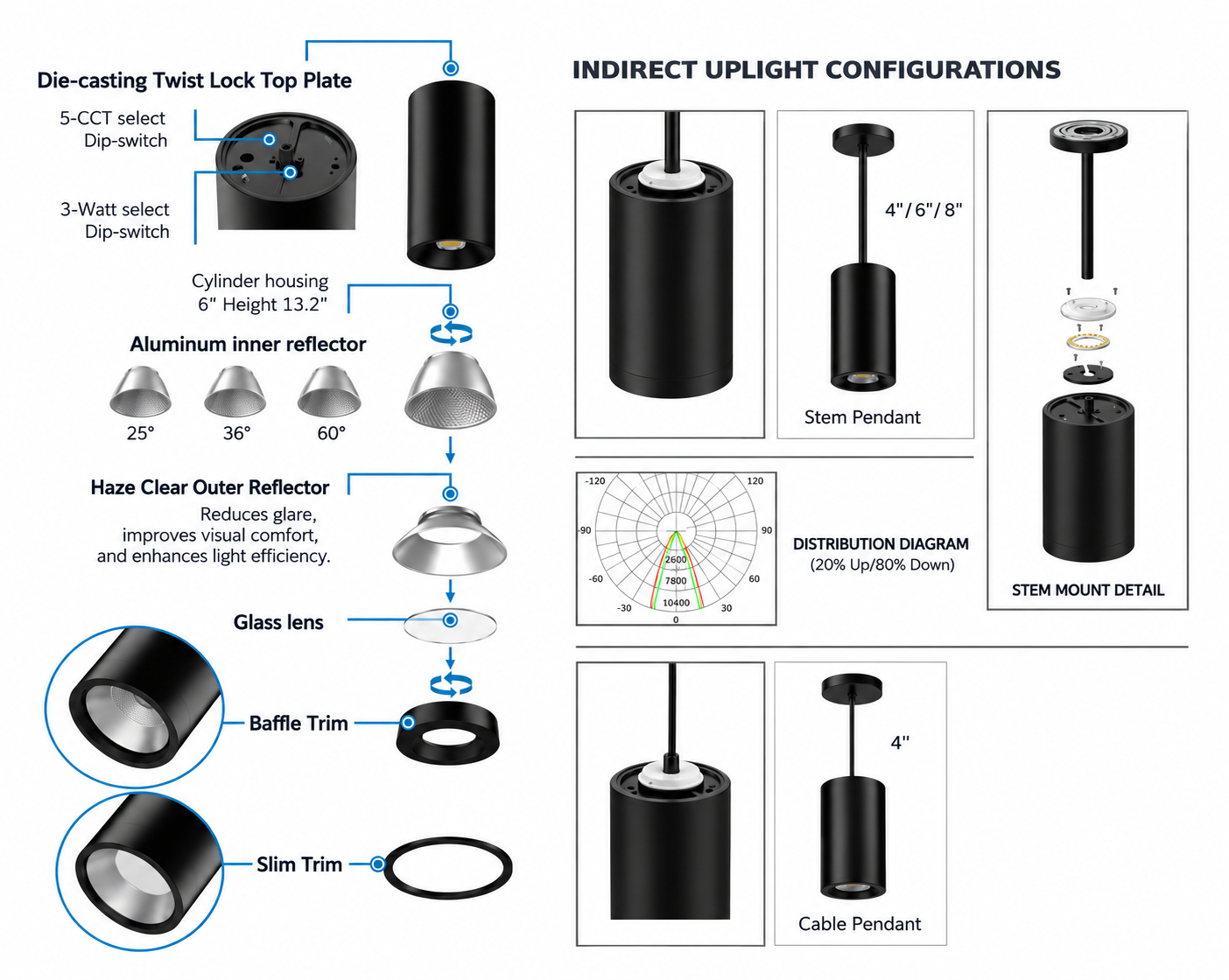

Construction- Precision cut housing extruded from 6063 aluminum.
- The cylinder height can be customized.
- Standard finishes include textured black and textured white with a powder-coated surface. Custom colors are available with either powder coating or spray painting, depending on the requirement.
Light Engine
- Utilizing high-quality COB light sources, offering CRI options of 80 and 90. Color consistency is controlled within 3 SDCM for single CCT and 5 SDCM for mixed light, making it an ideal choice for high-end architectural applications.
- Single CCT only for 8-inch, 2700K/3000K/3500K/4000K/5000K
- Available in 3-inch, 4-inch, and 6-inch sizes with 5-CCT select, 2700K/3000K/3500K/4000K/5000K
LED Drivers
- Offers a 2-in-1 power supply compatible with 0-10V and TRIAC dimming for convenient inventory management. Additionally, DALI, Dim to Warm and 4 MESH solutions are available.
- Class II isolation driver, AC120-277V /AC 120-347V
- THD<20, PFC>0.9
Controls and Integrated Sensors
- Provides a Mesh&Sensor solution designed for use with a dedicated canopy, external install on canopy

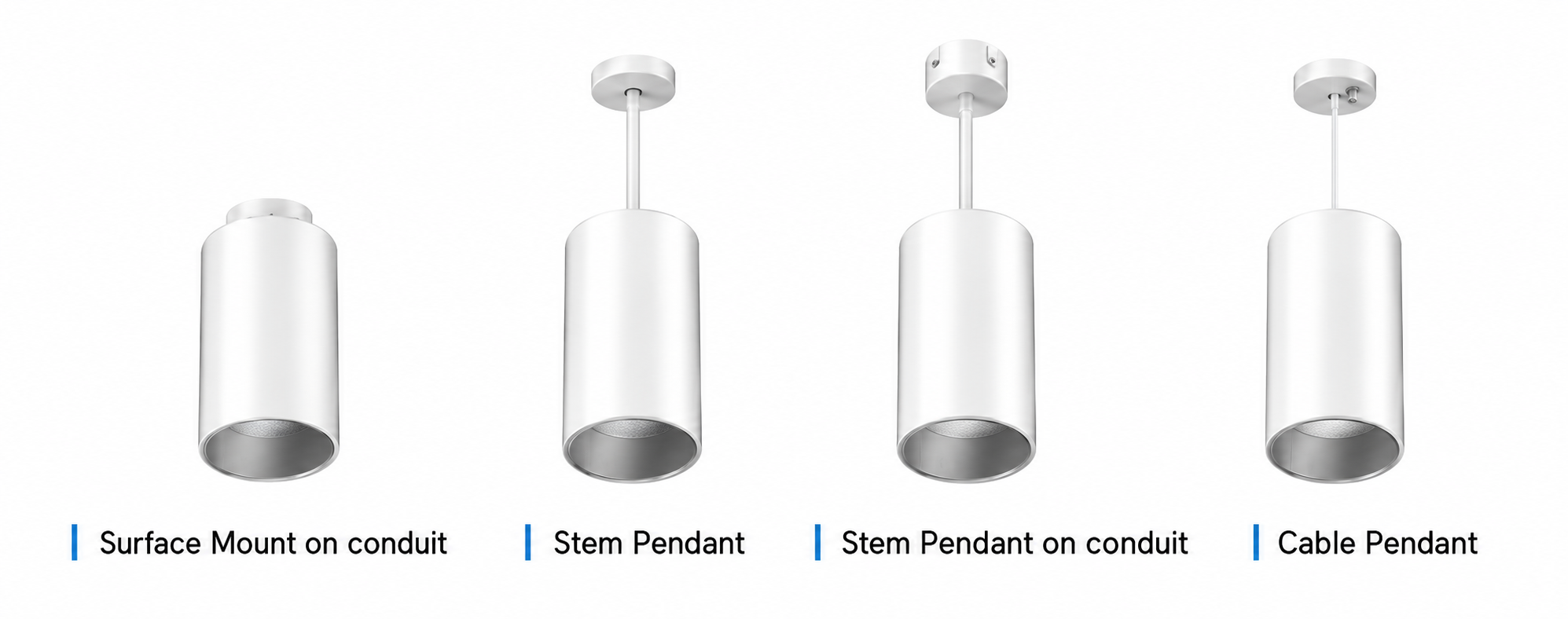

Mounting

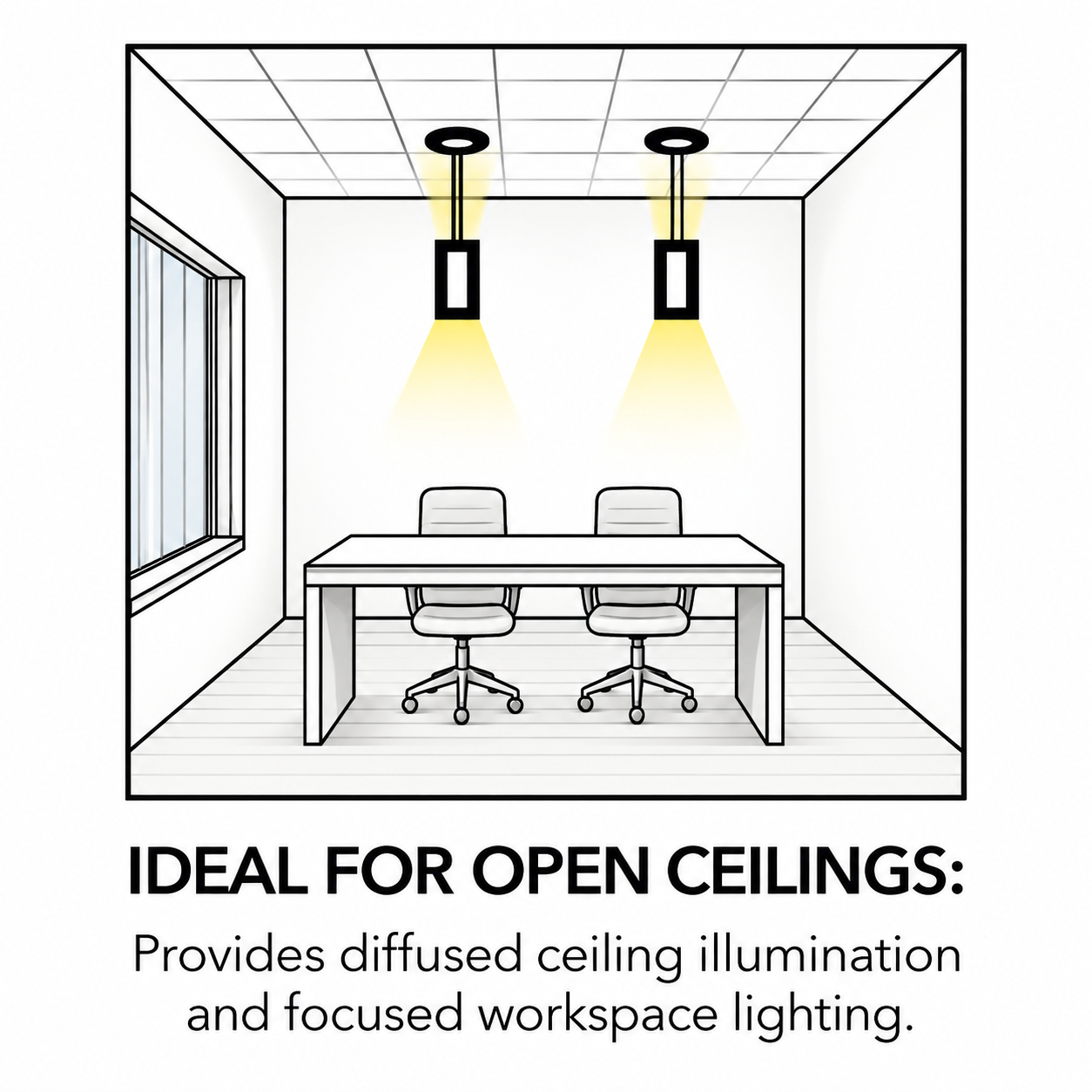

- Stem/Cable Pendant

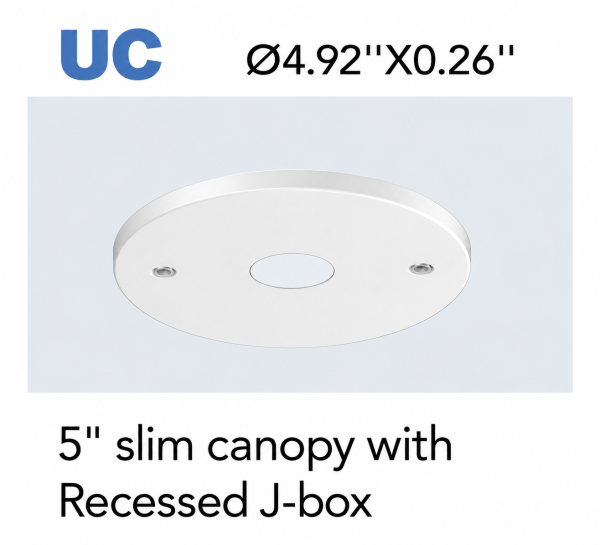

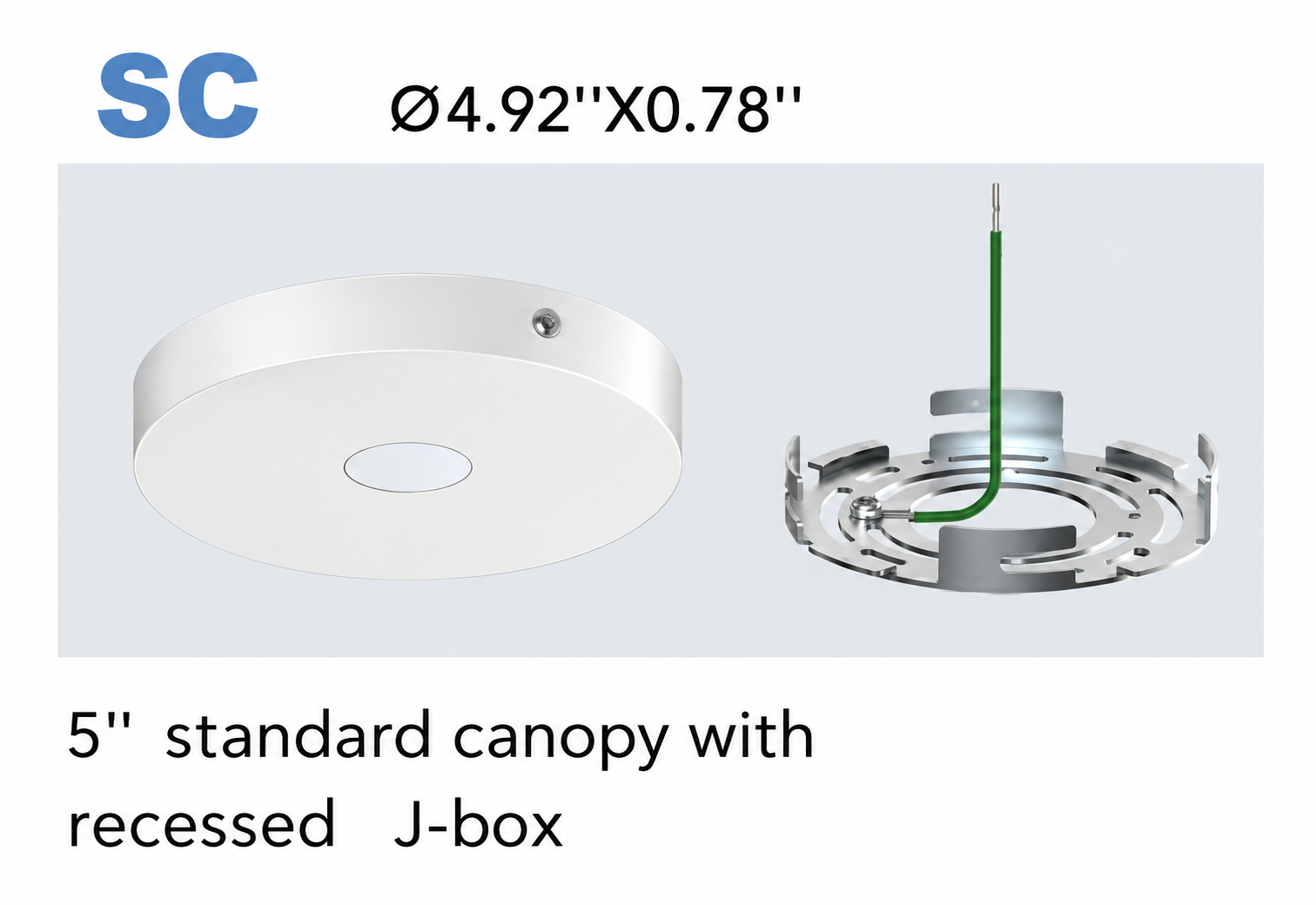

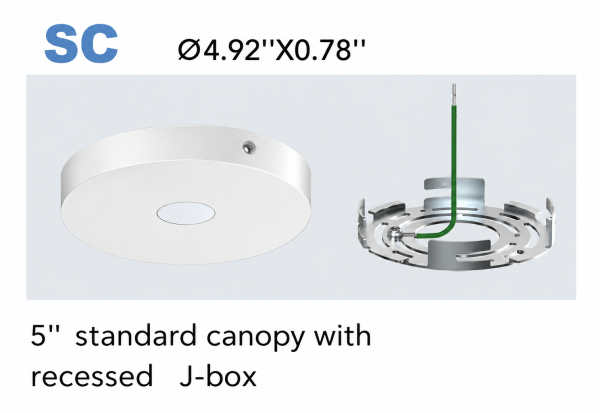

- Surface Mount

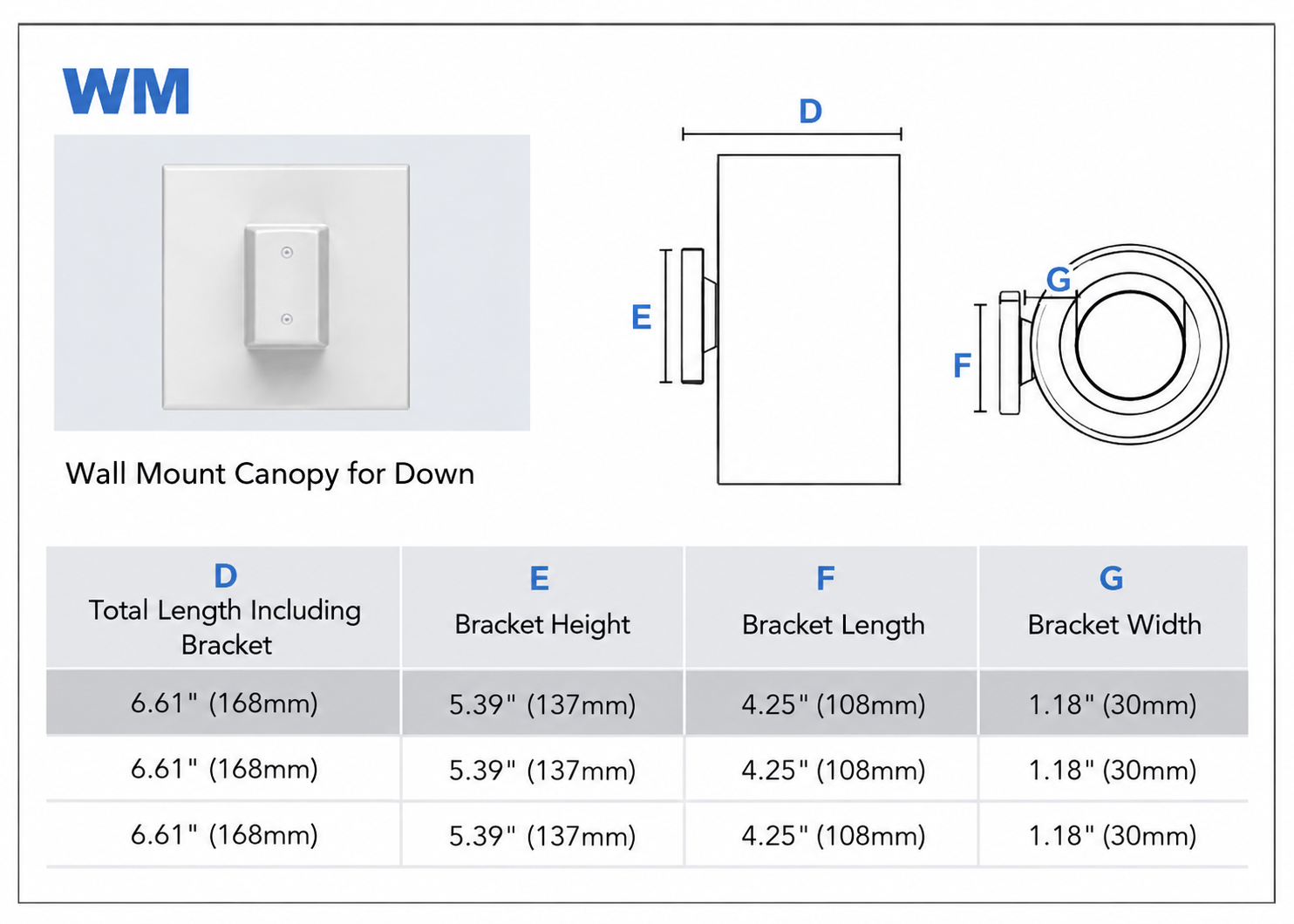

- Wall Mount
Lumen Maintenance
- 90% (L90) of initial light output at 61,000+ hrs
- 70% (L70) of initial light output at 237,000+ hrs
- Derived from TM-21 standard @40°C for worst case operating conditions
Environment
- Suited for damp location.
- Operating temperature: -25° C to 40° C
Compliance
- ETL, CETL - listed for damp locations
Warranty
- 5 year warranty
- MCL6-LCT Spec sheet (6.38 MB)
