Multipe Cluster 120V or 277V LED Recessed Downlights
1,2,3 or 4 Gang 15W, 20W, 30W & 40W LED
Accent Multiple Lights with High Wattage LED Modules
Description
The M-Series of Multiple Cluster, LED Recessed Downlights are part of the MCL family and are designed with state-of-the-art LED and driver technology. All of the MCLD-M-Series models feature hich end, Architectural Spec quality with the energy efficiency and all the advantages of a LED source. The M-series are for new construction and are offered in 1 to 4 lamp versions. Equivalent to MCL PAR20 / MR16 size housings.Design Features
Housing- Non-IC rated new construction housing available in single lamp through 4 lamps models
- Designed for easy accessibility from below ceiling
Trim

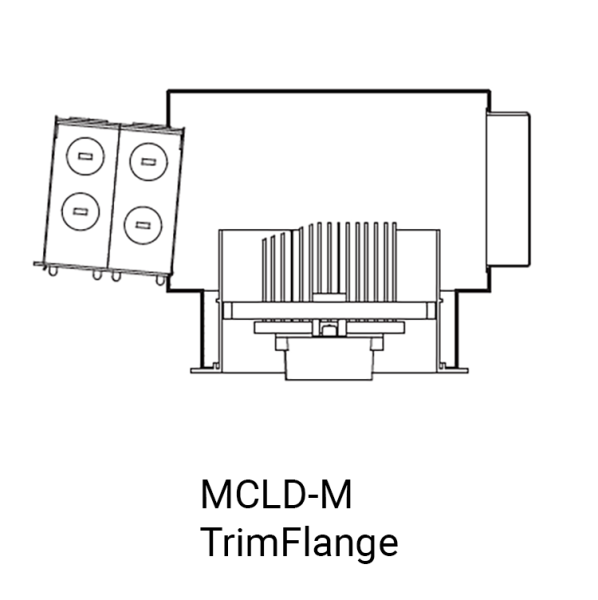

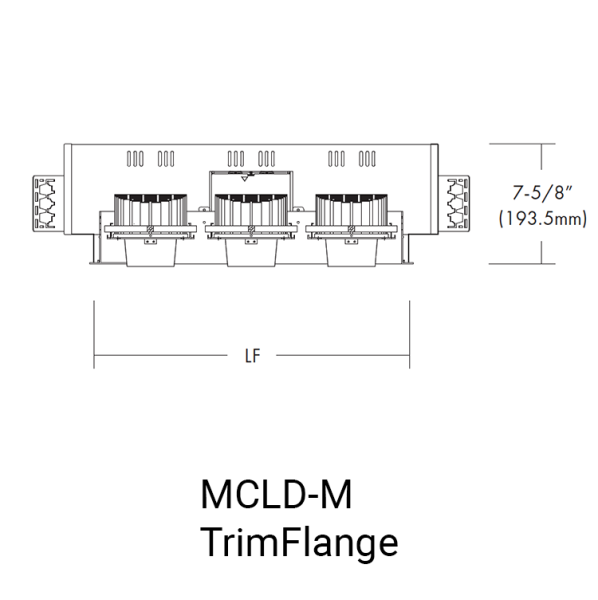

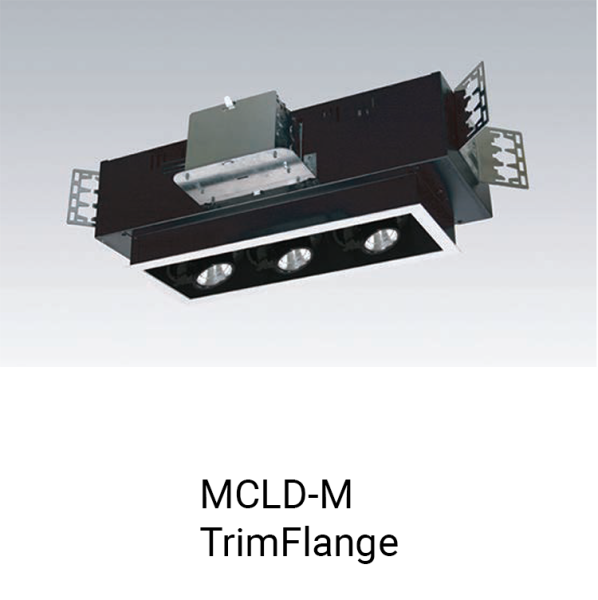

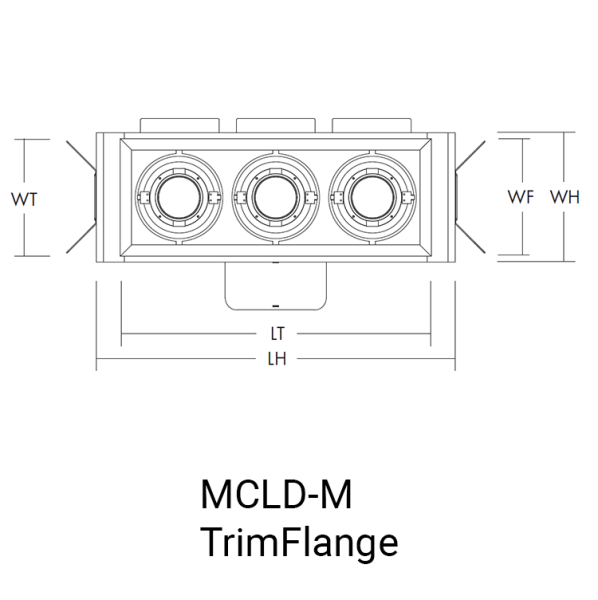

- Aluminum diecast, powder coated trim with 0.75" overlap flange around the ceiling opening
Trimless

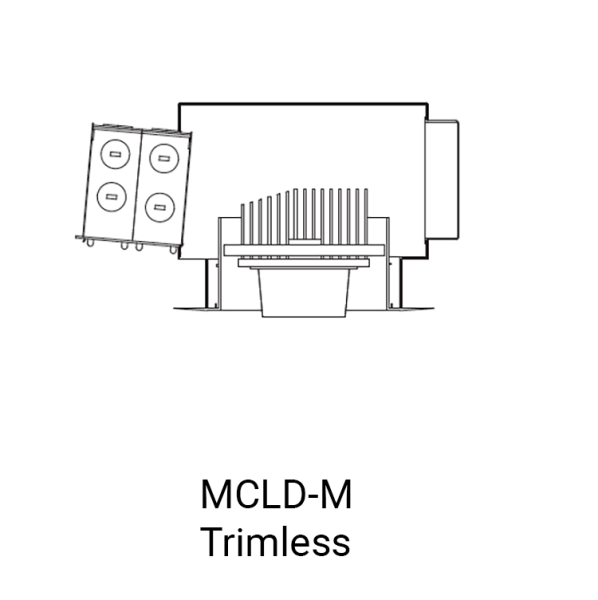

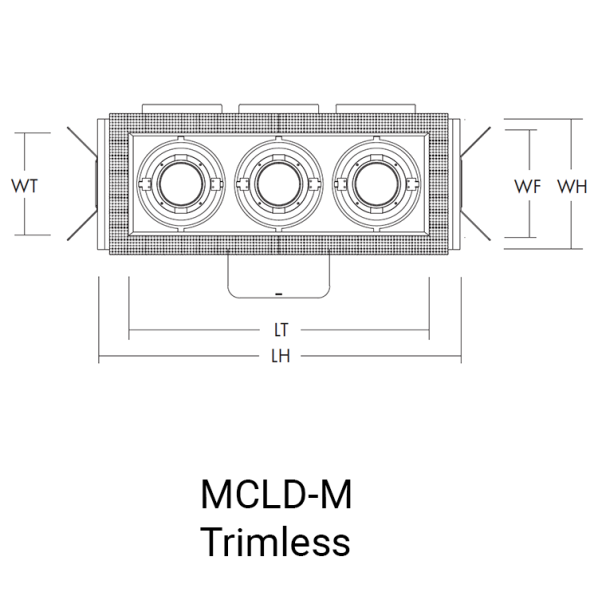

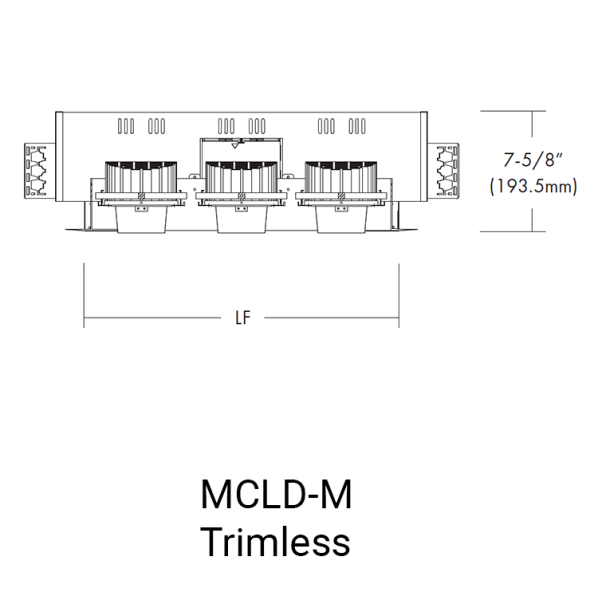

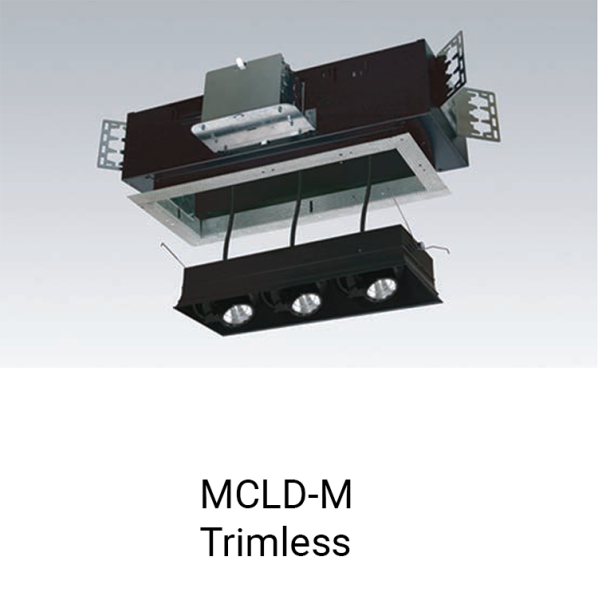

- Adjustable perforated mesh for Trimless Drywall Mud Framing in drywall/plaster ceilings. Allows for mud compound to be applied for a clean, trimless look
Junction Box
- Listed, through branch circuit wiring (max. 8 No 12AWG 90°C Branch circuit conductors (4in, 4out)
Thermal Protector
- Dedicated 120V and 277V Self-Resetting thermal sensors on J-box deactivates fixture if overheating occurs due to electrical issues, improper insulation, and/or high ambient temperatures
LED Enigne
- 1, 2, 3 or 4, 15W, 20W, 30W and 40W LED heads with 80 CRI in 3000K, 3500K and 4000K color temperatures. Mounted on a heat sink and adjustable up to 45° (length) x 45° (width) and lockable into positions in multiple directions
LED Driver
- High efficiency driver with +90% power factor for universal 120V-277V, 60Hz, 0-10V dimmable driver. Installed on junction box door for easy access from below ceiling. Meets UL class2, FCC47CFR class B.
Mounting
- Designed for new construction mounting with channel bracket kit, provides 5" vertical adjustments and accommodates 1/2"EMT conduit. Optional HBC-24 hanger rods available for T-bar grid or concealed spline ceilings
Limited Warranty
- LED Module: 5 years/50K hours
- Product/Driver: 3 years
Listing
- cCSAus Damp Location
