MCLD-N
Multipe Cluster 120V or 277V LED Recessed Downlights
1,2,3 or 4 Gang 14W & 25W LED
Accent Multiple Lights with High Wattage LED Modules

Description

The N-Series of Multiple Cluster, LED Recessed Downlights are part of the MCL family and are designed with state-of-the-art LED and driver technology. All of the MCLDS-Series models feature hich end, Architectural Spec quality with the energy efficiency and all the advantages of a LED source. The N-series are for new construction and are offered in 1 to 4 lamp versions. Equivalent to MCL PAR20 / MR16 size housings.

Design Features

Housing

Non-IC rated new construction housing available in single lamp through 7
Designed for easy accessibility from below ceiling

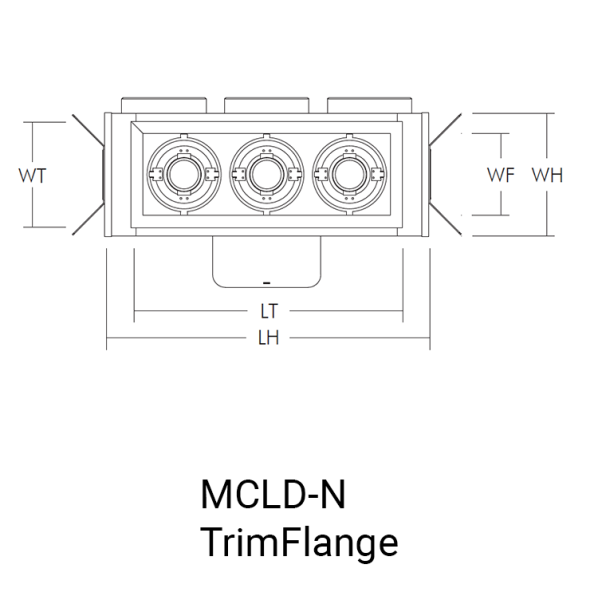

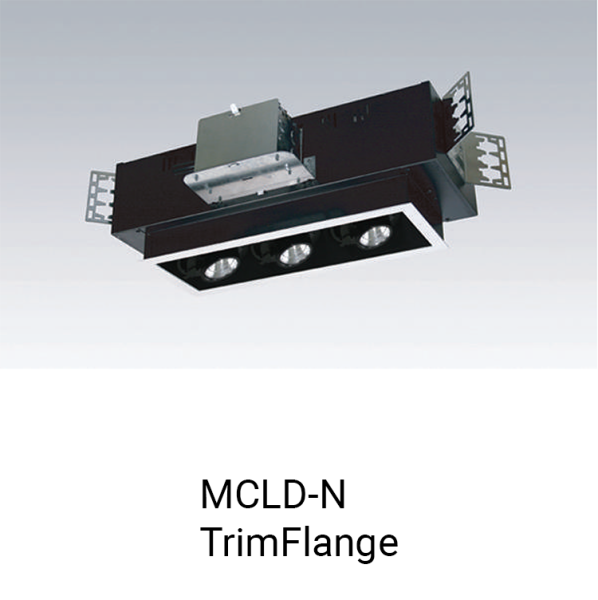

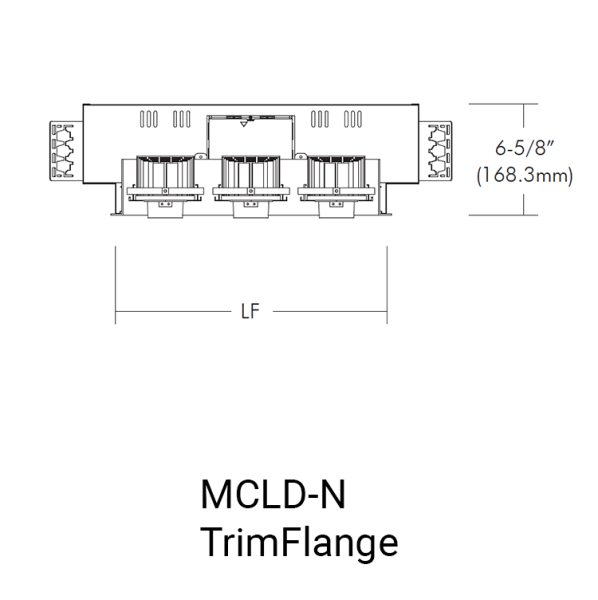

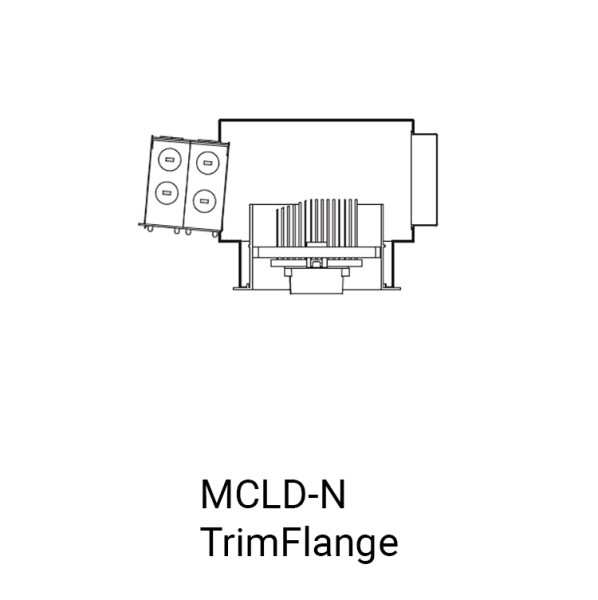

Trim

Aluminum diecast, powder coated trim with 0.75" overlap flange around the ceiling opening

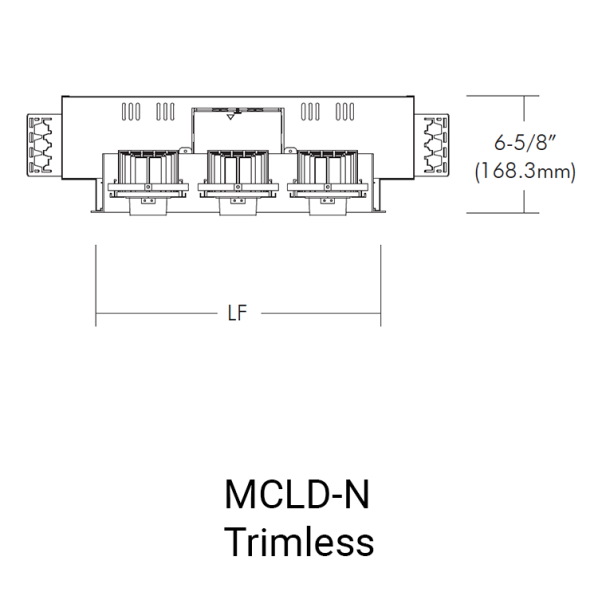

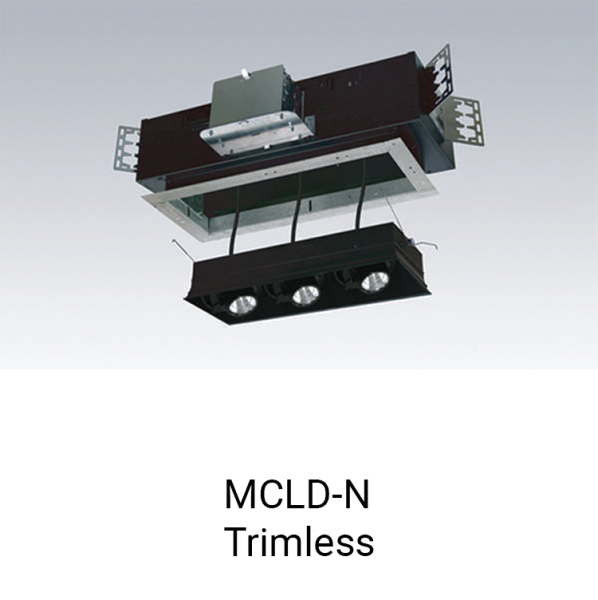

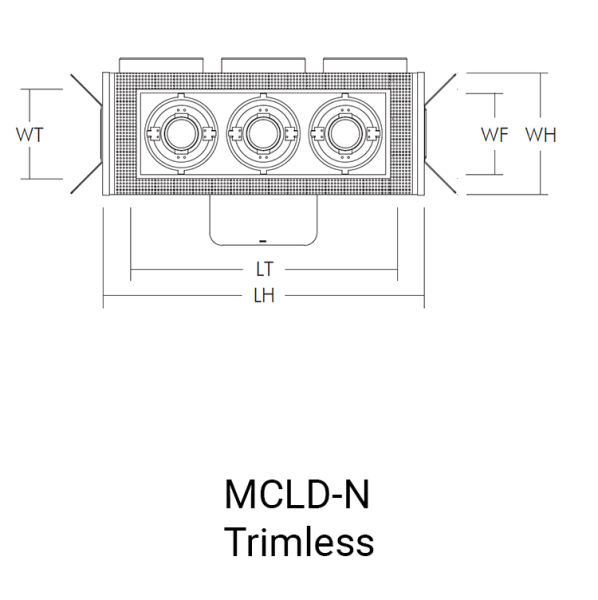

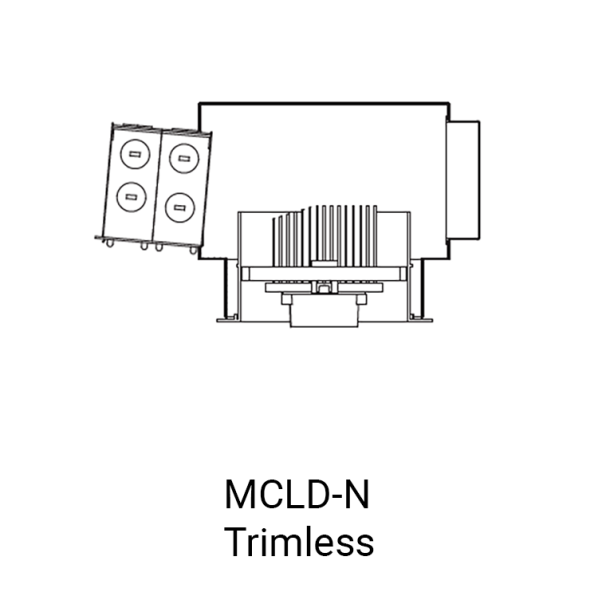

Trimless

Adjustable perforated mesh for Trimless Drywall Mud Framing in drywall/plaster ceilings. Allows for mud compound to be applied for a clean, trimless look

Junction Box

Listed, through branch circuit wiring (max. 8 No 12AWG 90°C Branch circuit conductors (4in, 4out)

Thermal Protector

Dedicated 120V and 277V Self-Resetting thermal sensors on J-box deactivates fixture if overheating occurs due to electrical issues, improper insulation, and/or high ambient temperatures

LED Enigne

1, 2, 3 or 4, 15W and 20W LED heads with 80 CRI in 3000K, 3500K and 4000K color temperatures. Mounted on a heat sink and adjustable up to 45° (length) x 45° (width) and lockable into positions in multiple directions

LED Driver

High efficiency driver with +90% power factor for universal 120V-277V, 60Hz, 0-10V dimmable driver. Installed on junction box door for easy access from below ceiling. Meets UL class2, FCC47CFR class B.

Mounting

Designed for new construction mounting with channel bracket kit, provides 5" vertical adjustments and accommodates 1/2"EMT conduit. Options include HB-24 and HBC-24 bar hangers or lathing channels for T-bar grid or concealed spline ceilings

Limited Warranty

LED Module: 5 years/50K hours
Product/Driver: 3 years

Listing

cCSAus Damp Location
