MCLW4-D-DOB / MCLW4-UD-DOB

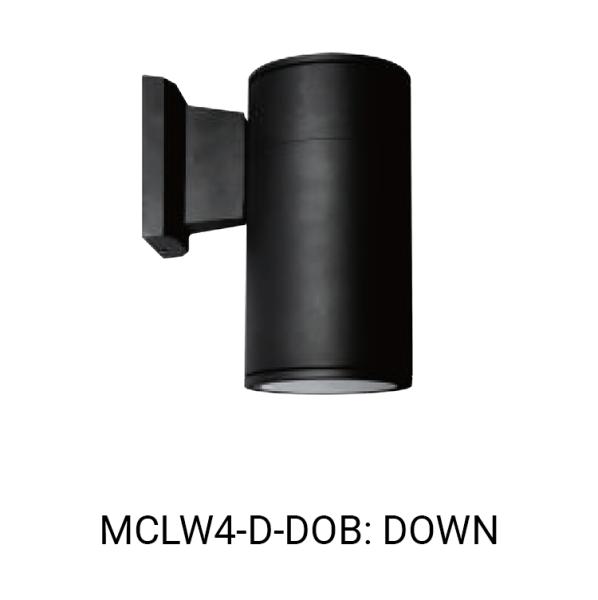

MCLW4-D-DOB
120V LED, DoB 4" Wall Mount Cylinder Down Light

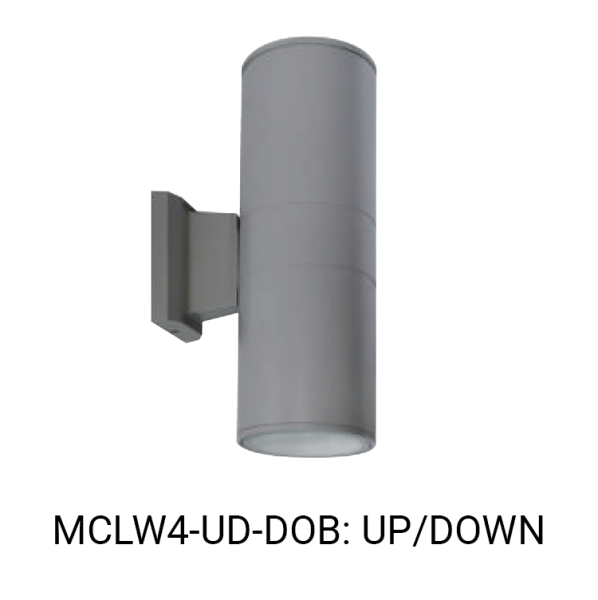

MCLW4-UD-DOB
120V LED, DoB 4" Wall Mount Cylinder Up and Down Light
Mounting
Limited Warranty
Listing
120V LED, DoB 4" Wall Mount Cylinder Down Light
MCLW4-UD-DOB
120V LED, DoB 4" Wall Mount Cylinder Up and Down Light
Description
The MCLW 4" Cylinders are Wet Location and IP65 rated for outdoor use. These wall mount cylinders come in two versions: down light and up & down light. The fixtures are offered in 15W, 20W and 30W LED, DoB modules with a customzed IC, highbred circuit on board with dimming down to 5% with most of Triac dimmers on the market. DOB, 120V AC Direct technology has low heat, great reliability and has been designed for these fixtures to operate environments between -22°F to 104°F (-30°C to 40°C).Design Features
Features- All aluminum construction, powder coat painted in white, black or silver finish for harsh, weatherproof applications
- DOB, 120V AC Direct technology in 15W, 20W or 30W modules with integrated circuit, customized chips on board
- 80 or 90 CRI with color temperatures in 2700K, 3000K, 3500K, 4000K or 5000K
- Wet Location, IP65 Rated
Mounting
- Mount completely assembled fixture directly on the wall surface using appropriate anchor bolts or screws (supplied by others)
Limited Warranty
- LED Module: 5 years/50K hours
- Product: 3 years
Listing
- cCsa-us Wet Location
- ENERGY STAR
