Ordering Information
30--9

Description
MLR4S

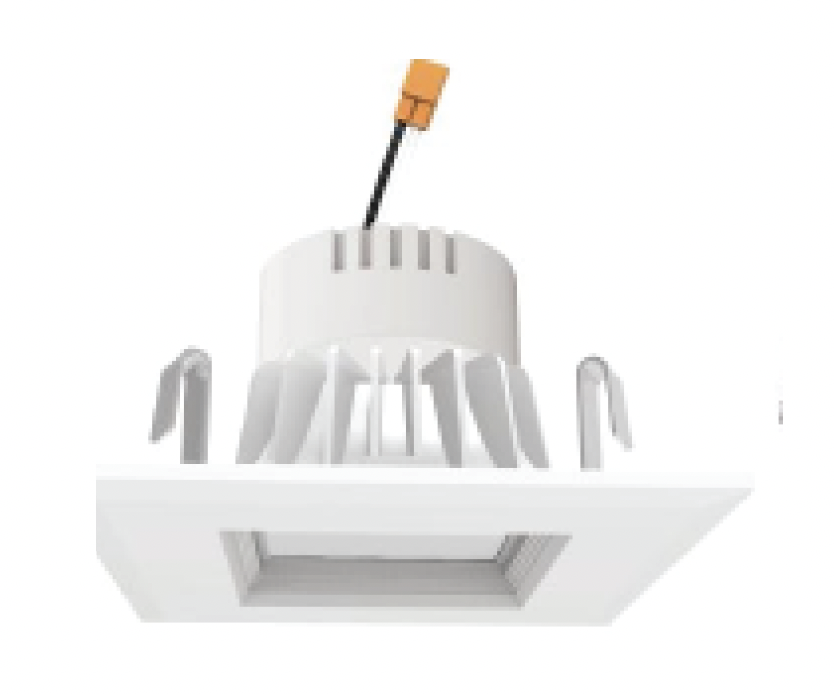

120V 4" LED Recessed Retrofit-Kit with E26 and GU24 Base Adapter


Description


The 4" Retrofit LED module & trim kit with E26 medium screw base for the 4" IC/Airtight and Non-IC incandescent recessed downlight and GU24 adapter for CFL housing. It's designed for use with Image M4, M41C and the remodeled including other compatible most 4" housings classified by ETL High efficacy LED with integral dimmable driver and the optical diffusion produces high lumen transmission and even illumination. Suitable for wet location.



Design Features


LED Modules & Trim
  • Durable aluminum extrusion heat sink with integrated with COB (chip on board)
  • Module construction includes LED, heat sink, lens, baffle trim
  • Available with baffle trims in white or black painted and clear or white reflectors lens
  • Impact-resistant plastic
  • High lumen transmission and diffusing for even illumination

Housing compatibility
  • See Housing Compatibility section

Electrical connection
  • E26 medium screw-base Edison connector provides easy retrofit of incandescent housing.
  • Also available GU24 base connector for compact fluorescent housing (Optional)
  • 120V LED Power Supply on-bed with customized IC chip
  • 10-100% triac dimmable for most of leading & trilling edge incandescent & low voltage dimmer switches
  • Patented (Pending in USA) driving circuit to prevent inrush current hurting switch and module.
  • Recommended for use max. 45 fixtures per run of a dimmer switch 600W loaded and max. 23 fixtures per a dimmer switch 300W loaded.

Warranty
  • 50,000hr of lamp life

Listing
  • ETL listed
  • State of California Title 24
  • Energy Star qualified






Specification Sheet
MLR4S Specification Sheet  (388.62 KB)
