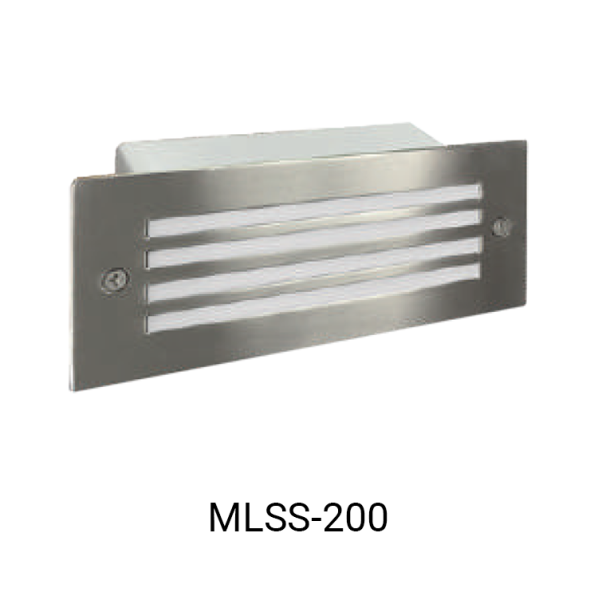

MLSS-200

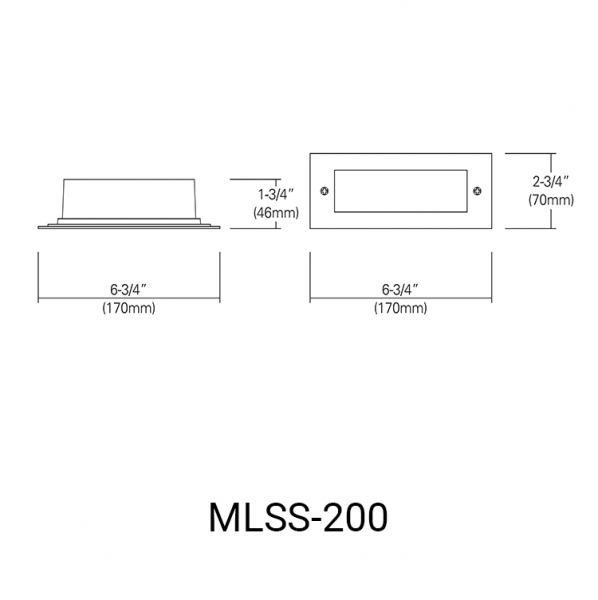

MLSS-200 Linedrawing

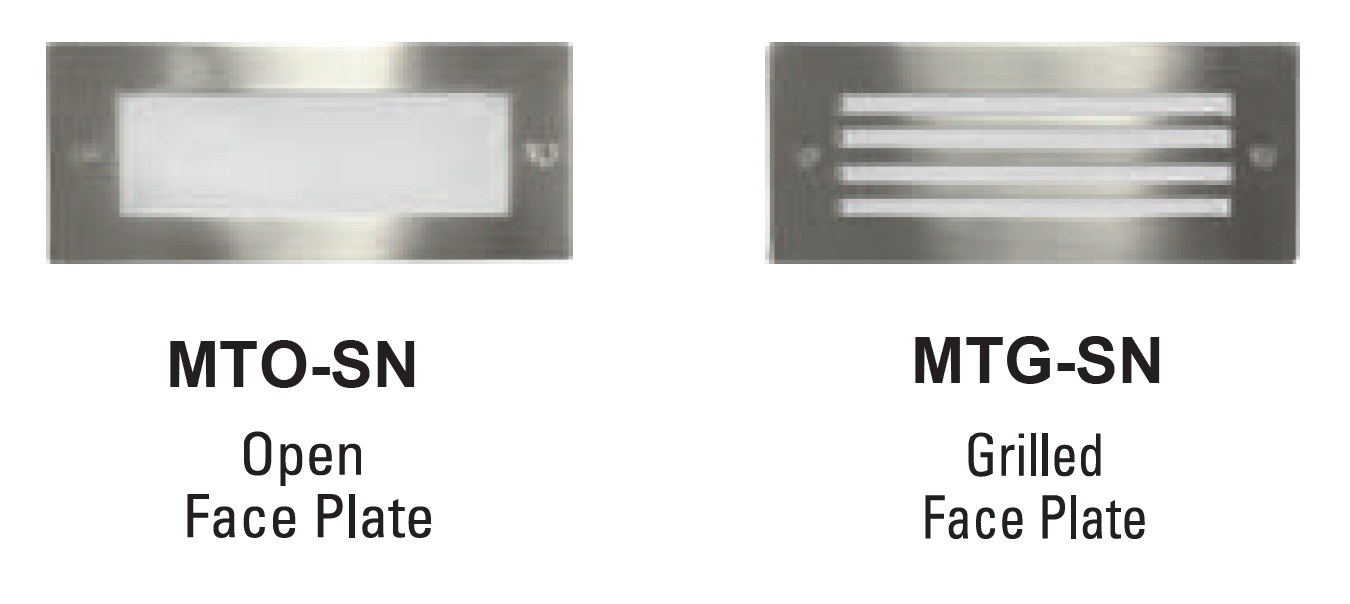

MLSS-200 Trims
Preview: MLSS-200
Preview: MLSS-200 Linedrawing
Preview: MLSS-200 Trims
MLSS-200
MLSS-200
MLSS-200 Linedrawing
MLSS-200 Trims
Mobile Preview: MLSS-200
Mobile Preview: MLSS-200 Linedrawing
Mobile Preview: MLSS-200 Trims

MLSS-200

Ordering Information
MLSS-200- - - -SN

Description
MLSS-200
120V and 277V
LED Mini Size Step Light



Description

The MLSS-200 is designed with linear LED module permanently installed in the fixture for easier, economical maintenance as of long lasting life of LED and super functional smooth dimming by Trailing & Leading edge dimmers in the market.


Features & Functions

  • Cast aluminum housing with stainless steel face plate
  • No heat radiation
  • Wet location listed to IP65 for indoor and outdoor installation
  • Tempered frosted glass diffused lens delivers perfect light distribution
  • 120V AC LED module with integrated IC chip imbed on board and 10-100% Triac dimming with most of leading and trailing edge dimmer switches in the market. Also available with 220V-230V AC module
  • 120V or 277V direct wiring, no drive needed

Listing
  • CSA-us Certificated
  • State of California Title 24
  • Energy Star Approved & Listed
  • Wet location

Warranty
  • 5 years of lamp life


Specification Sheet
MLSS-200 Specification Sheet  (748.73 KB)
