120V or 277V LED Surface/Pendant Multiple Downlights
Description
The MCLDS Surface Multiple Cluster, LED Downlights are part of the MCLD family for a new surface look and are designed with state-of-the-art LED and driver technology. All of the MCLDS models feature high end, Architectural Specification quality energy efficiency and all the advantages of a LED source.Design Features
Surface Structure

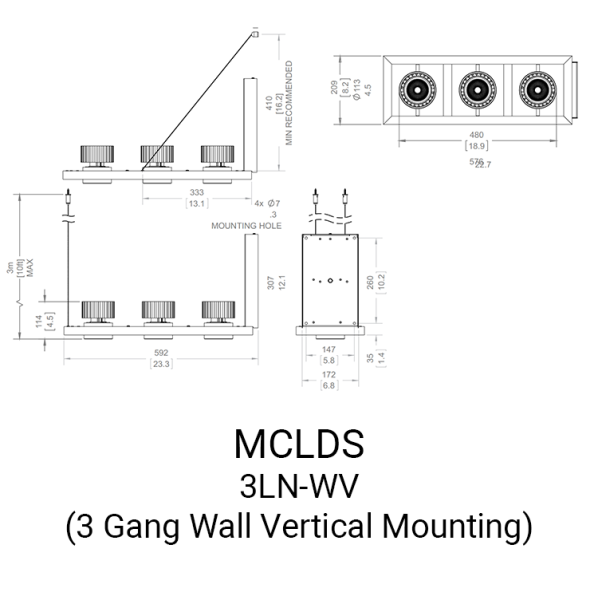

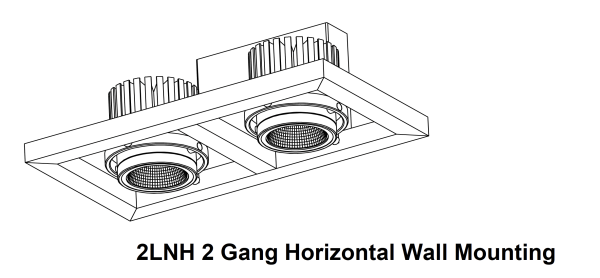

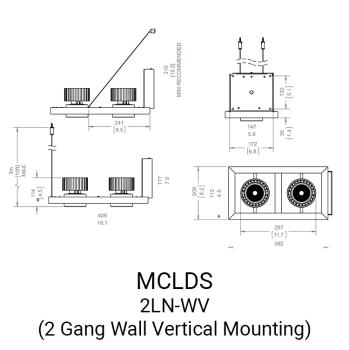

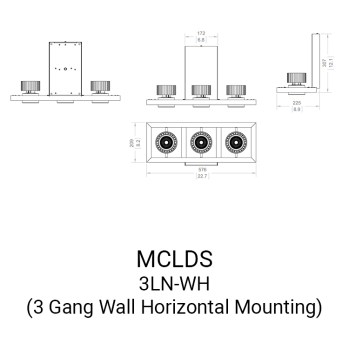

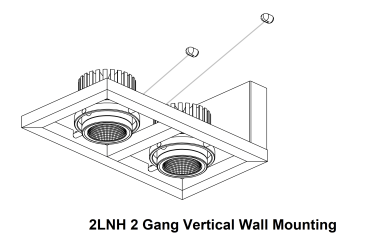

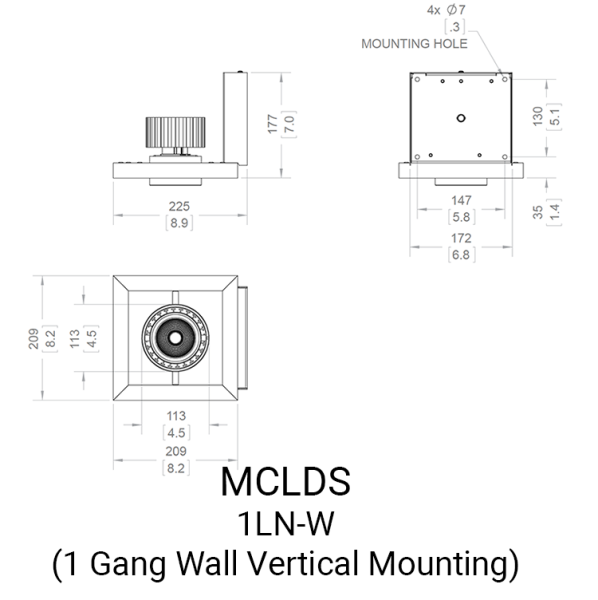

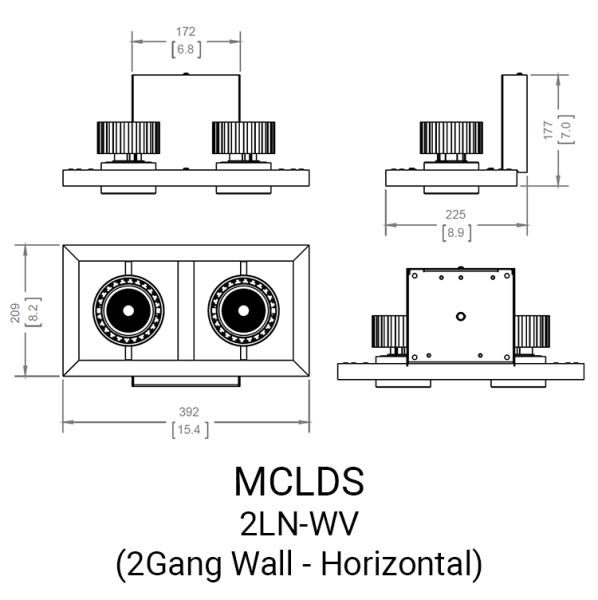

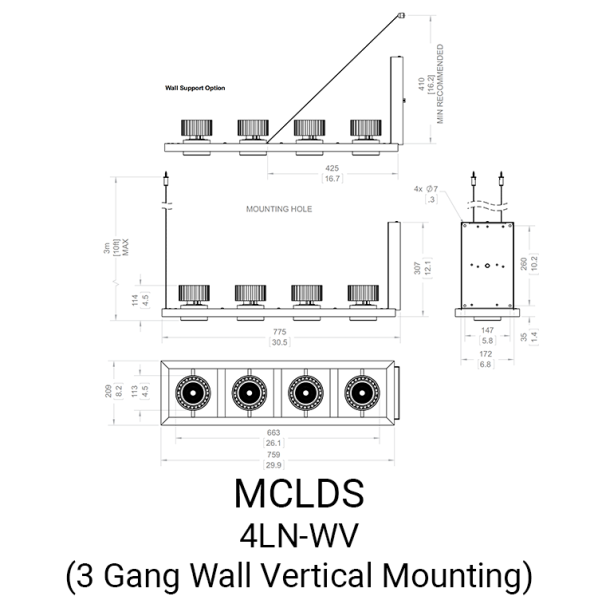

- Pendant Ceiling and Wall Mounted Vertical and Horizontal mounting Options from 1 Gang to 4 Gang and Custom Options (Consult Factory)
- Designed for easy installation and comes with all accessories according to coniguration selected
Junction Box
- Listed, through branch circuit wiring (max. 8 No 12AWG 90°C Branch circuit conductors (4in, 4out))
Thermal Protector
- Dedicated 120V and 277V Self-Resetting thermal sensors on J-box deactivates fixture if overheating occurs due to electrical issues, improper insulation and/or high ambient temperatures
LED Engine
- 1, 2, 3 or 4, 10W, 15W and 25W LED Modules with 90 CRI in CCT 2700K, 3000K, 3500K and 4000K color temperatures with CCT field adjustable settings. Mounted on a heat sind and adjustable up to 45°(length) x 45°(width) and lockable into position s in multiple directions
LED Driver
- High efficiency driver with +90% power factor for universal 120V~277V, 60Hz, 0-10V dimmable driver. Installed on junction box door for easy access from below ceiling. Meets UL class 2, FCC47CFR class B
Limited Warranty
- LED Module: 5 years/50K hours
Listing
- cCSAus Damp Location
